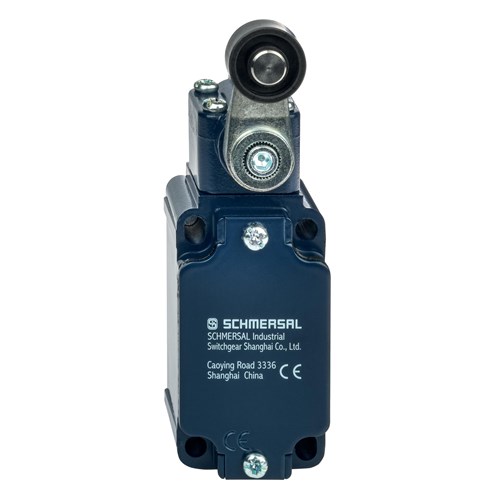

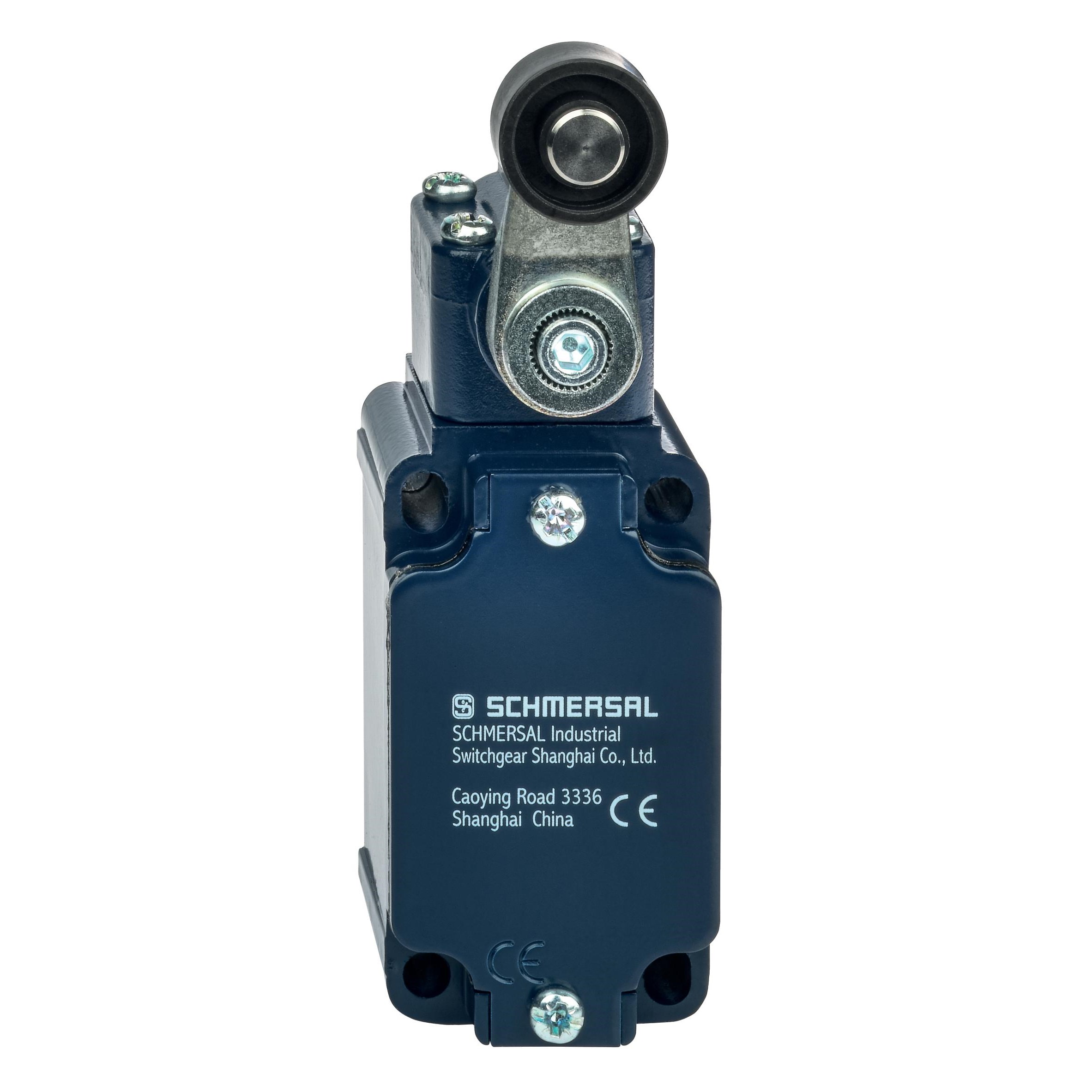

Schmersal 151170267 Position Switch 230VAC, 24VDC

Product Code: 151170267

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Element Roller Lever
Actuating Speed 2.5 m/s
Actuator Type A - According to EN 50041
Contact Material Silver
Enclosure Coating Material Painted
Housing Material Painted
Mechanical Life 30000000 Cycles
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 5000/h
Rated Voltage 230 VAC, 24 VDC
Sensor Size 60.55 mm L x 40 mm W x 129.5 mm H
Standards and Approvals EN ISO 13849-1

CAD Blocks & Dimensions
