Specifications

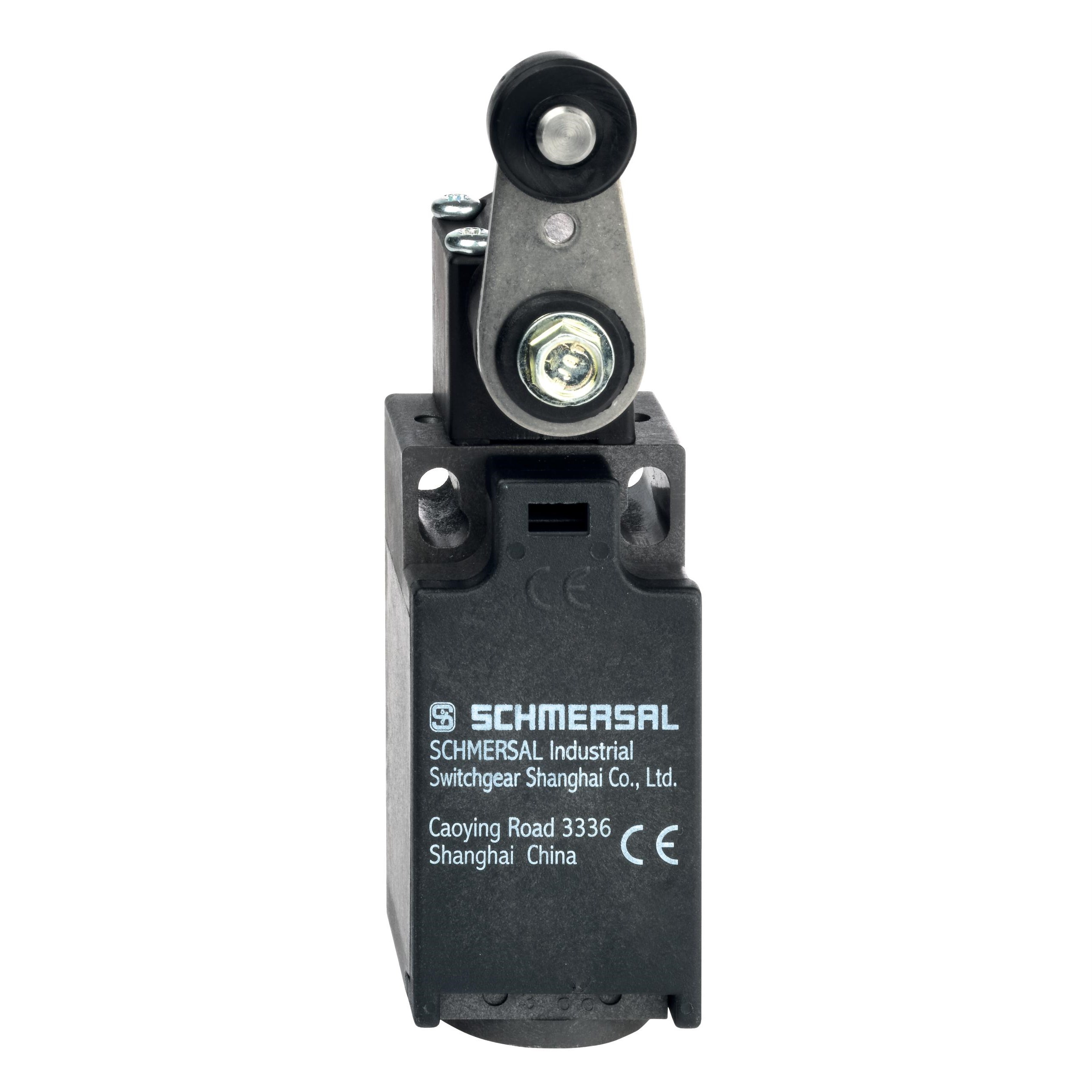

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Actuating Element	Roller Lever
Actuating Speed	4122 mm/min
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	20000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A, 1 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC, 24 VDC
Sensor Size	46 mm L x 30 mm W x 108.5 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
