Specifications

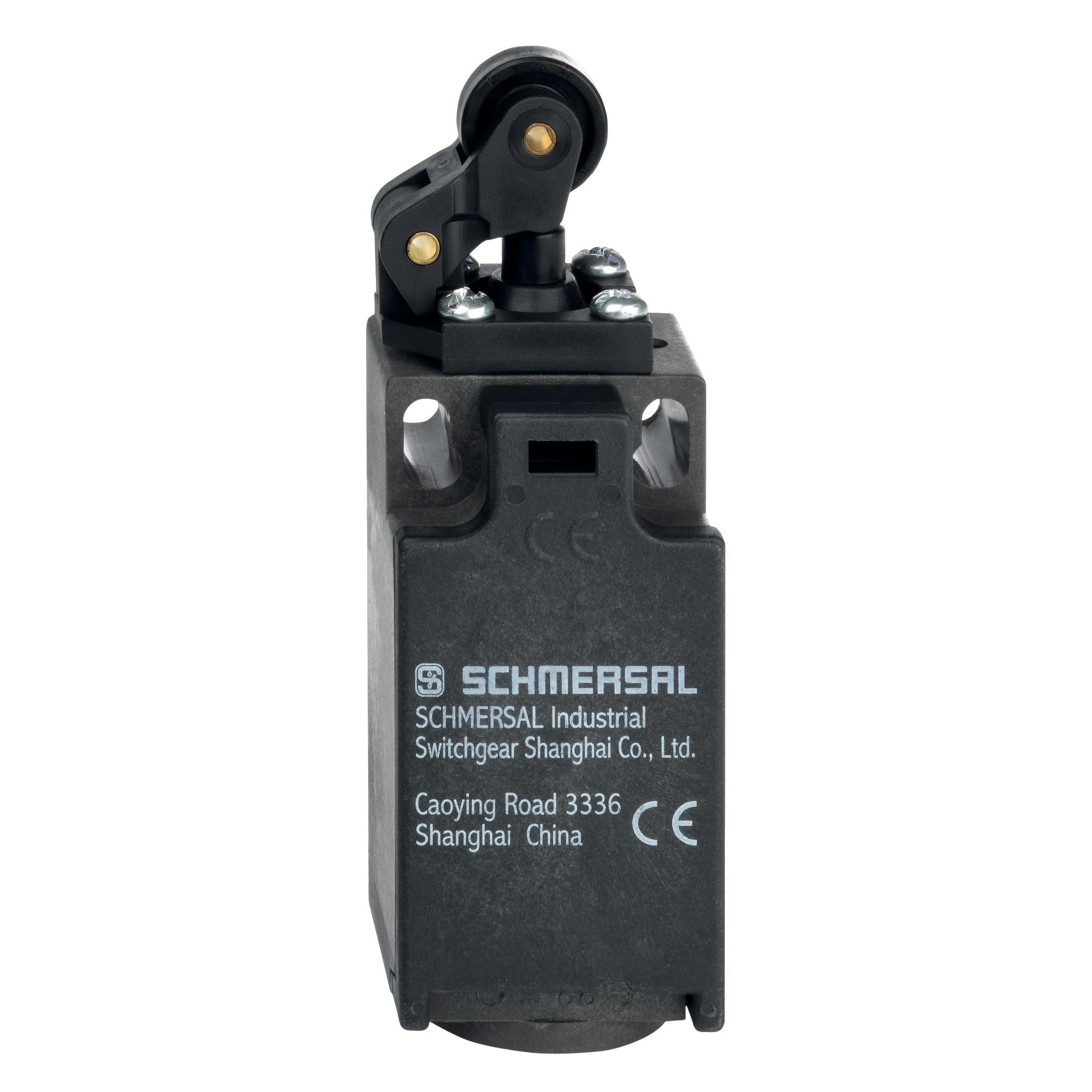

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Offset Roller Lever
Actuating Speed	160 mm/min
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	20000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	30 mm L x 30 mm W x 89.5 mm H
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight	59 g
