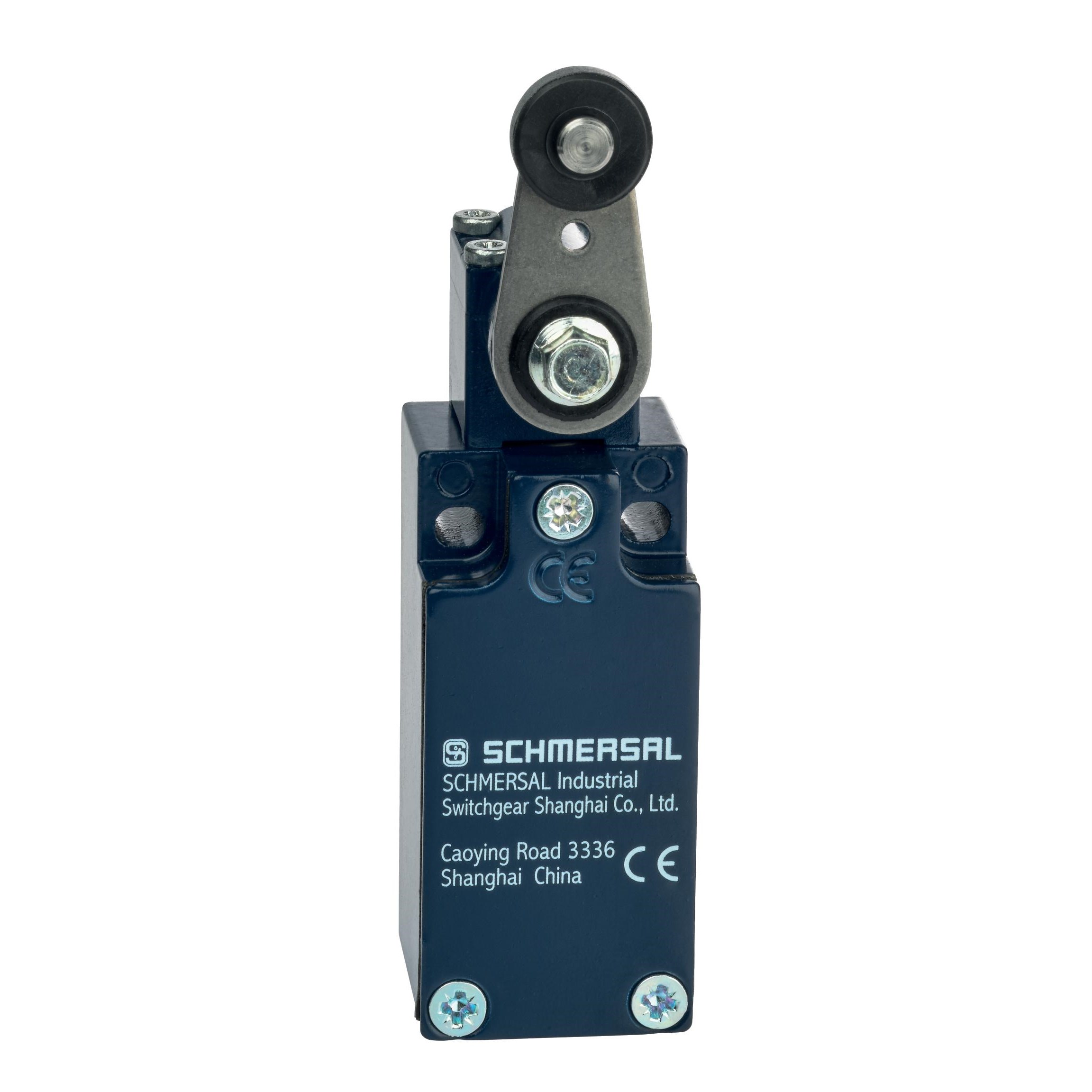

Schmersal 151095086 Position Switch 230VAC 1NO+1NC

Product Code: 151095086

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Position Switch
Brand SCHMERSAL
Action Snap Action
Actuating Element Roller Lever
Actuating Speed 687 mm/min
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Metal, Die Cast Zinc
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 5000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 46 mm L x 30 mm W x 110.5 mm H
Standards and Approvals BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Weight 211 g

Documents

IPD Product Catalogue V17
SCHMERSAL Datasheet

Certificate

Certificate of Compliance
EU Declaration of Conformity
Other Certification

CAD Blocks & Dimensions
