Specifications

Product Type	Hinge Safety Switch
Brand	SCHMERSAL
Action	Slow Action
Contact Configuration	1NC
Contact Material	Silver
Degree of Protection	IP65
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-20 to 65 deg C
Rated Current	2 A
Rated Frequency	120/h
Rated Insulation Voltage	250 V
Rated Voltage	230 VAC
Sensor Size	36 mm L x 111.5 mm W x 92 mm H
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC002591, EN IEC 60947-5-1
Weight	420 g

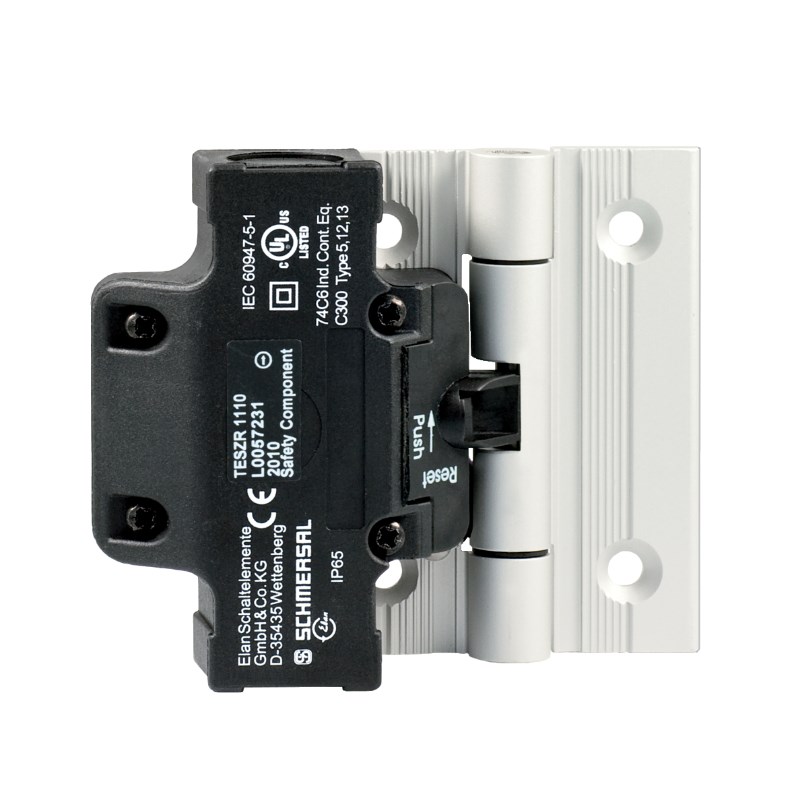

Schmersal 103040725 Hinge Safety Switch 230VAC 1NC
