Specifications

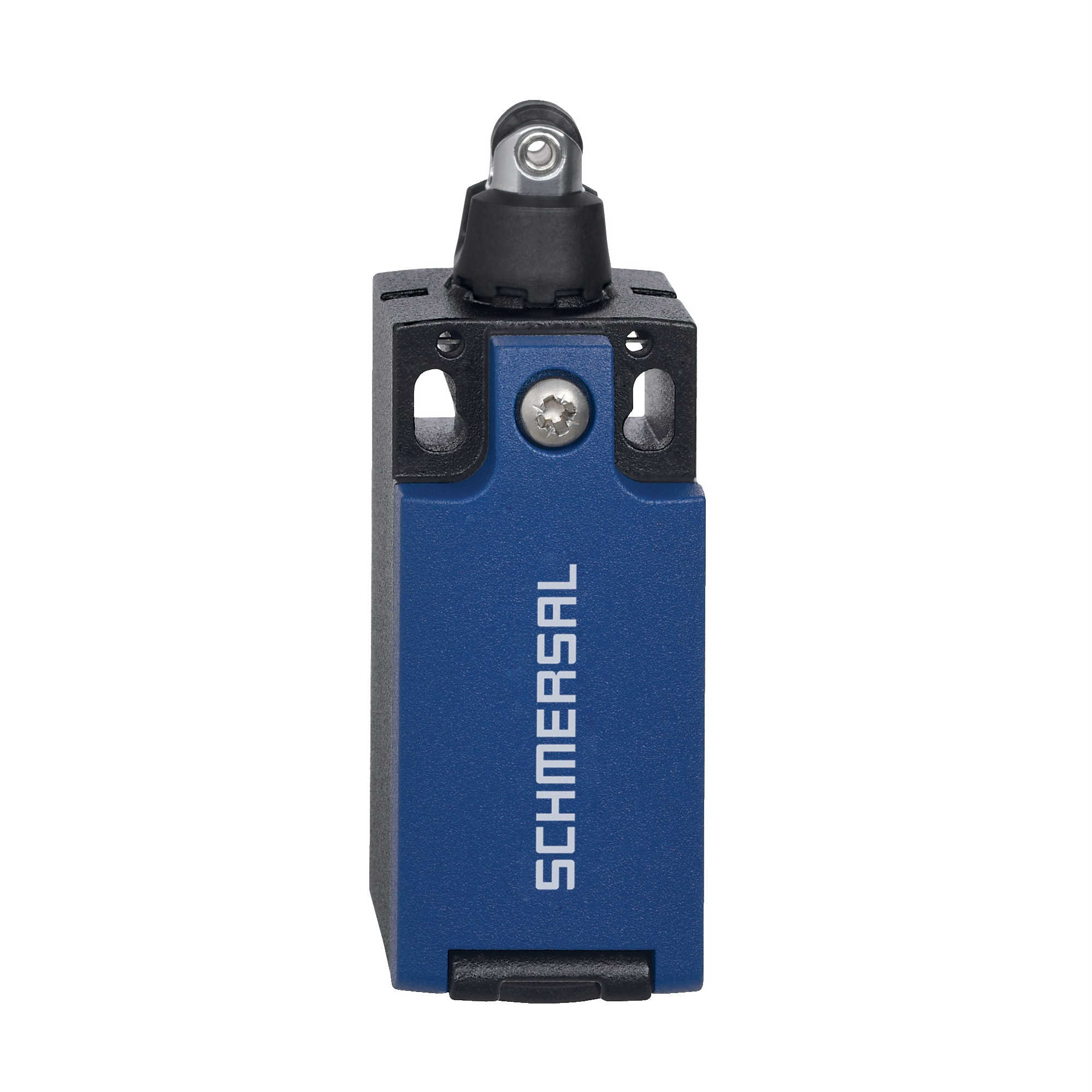

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Speed	0.5 m/s
Contact Configuration	1NO+1NC
Contact Material	Gold Plated Silver
Degree of Protection	IP66, IP67
Housing Material	Metal, Die Cast Zinc
Mechanical Life	10000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	3 A
Rated Frequency	5000/h
Rated Insulation Voltage	250 V
Rated Voltage	50 VAC
Sensor Size	32.5 mm L x 31 mm W x 85.6 mm H
Standards and Approvals	CCC, cULus, EC000030, EN IEC 60947-5-1
Weight	204 g
