Specifications

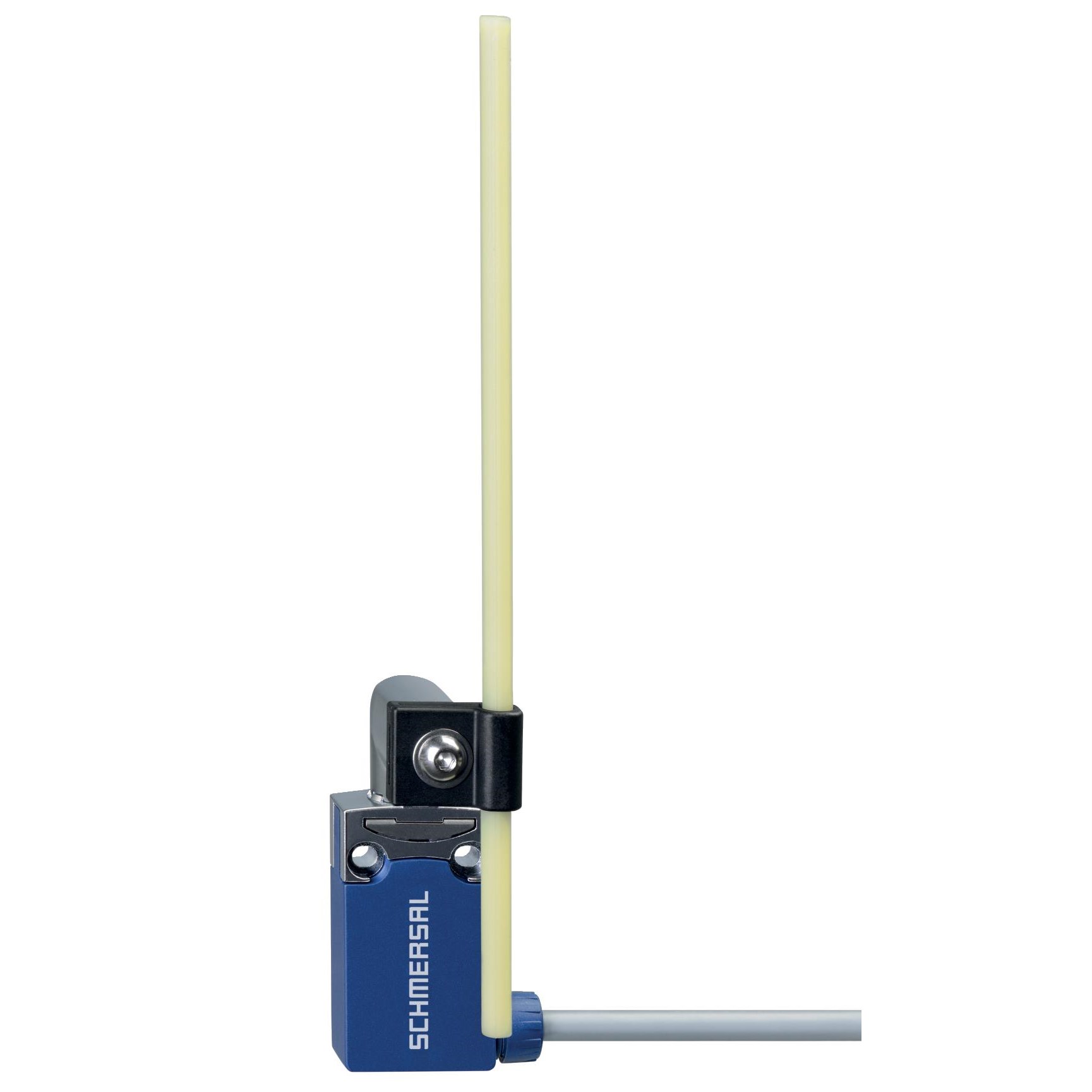

Product Type	Position Switch
Brand	SCHMERSAL
Series	PS116
Action	Snap Action
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	300 V
Rated Voltage	240 VAC
Sensor Size	16.6 mm L x 31 mm W x 169 mm H
Standards and Approvals	CCC, EC000030, EN IEC 60947-5-1
Weight	240 g
