Specifications

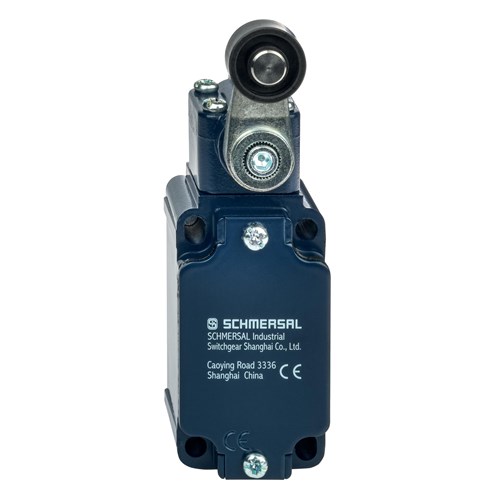

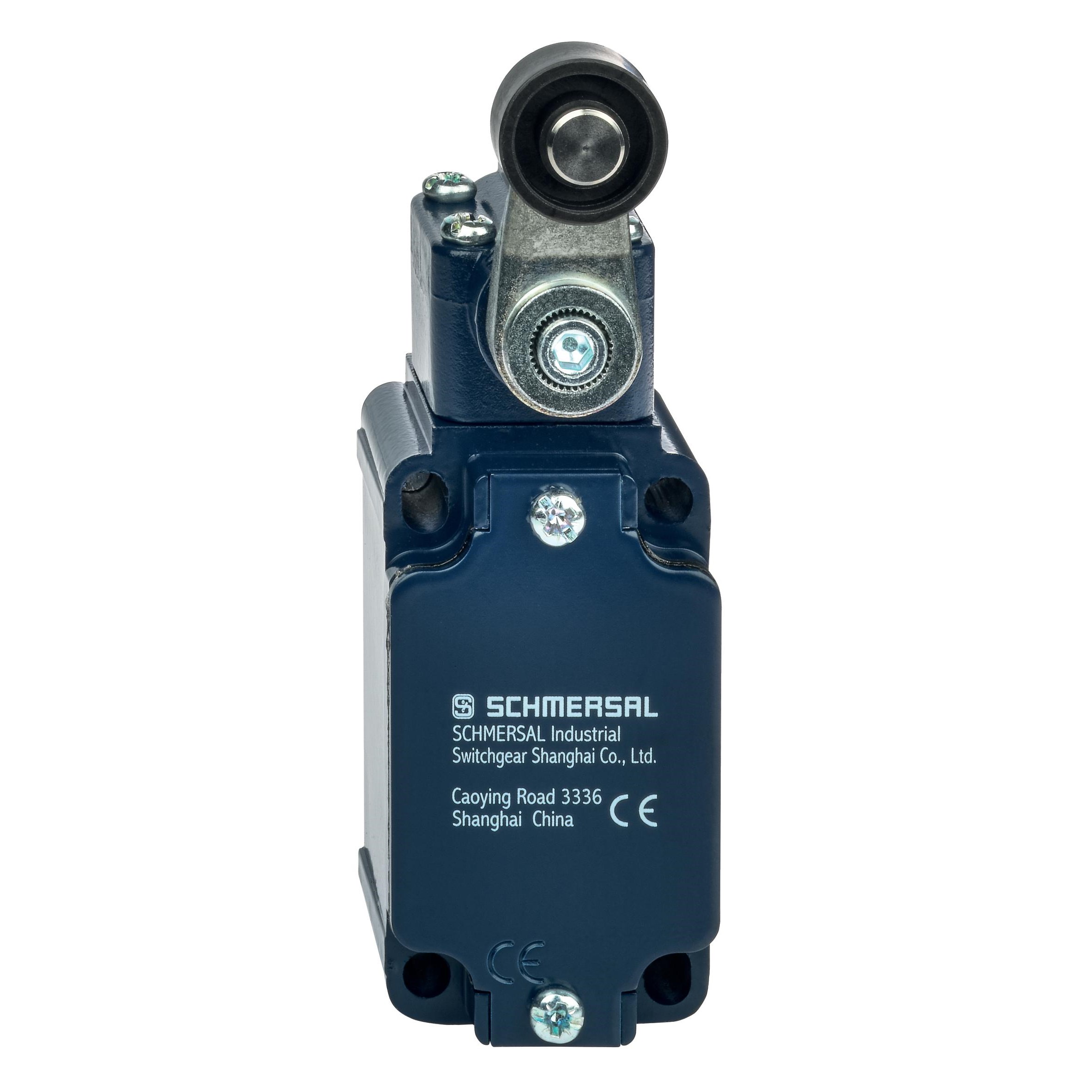

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Series	Ex-T335
Action	Slow Action
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Metal, Die Cast Zinc
Mechanical Life	1000000 Cycles
Operational Temperature	-20 to 60 deg C
Rated Current	4 A
Rated Frequency	1800/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	60.6 mm L x 40.5 mm W x 134 mm H
Standards and Approvals	ATEx, CCC-Ex, cULus, EC000030, EN 60079-1, EN 60079-31, EN 60079-7, EN IEC 60079-0, IECEx, INMETRO
Weight	400 g
