Specifications

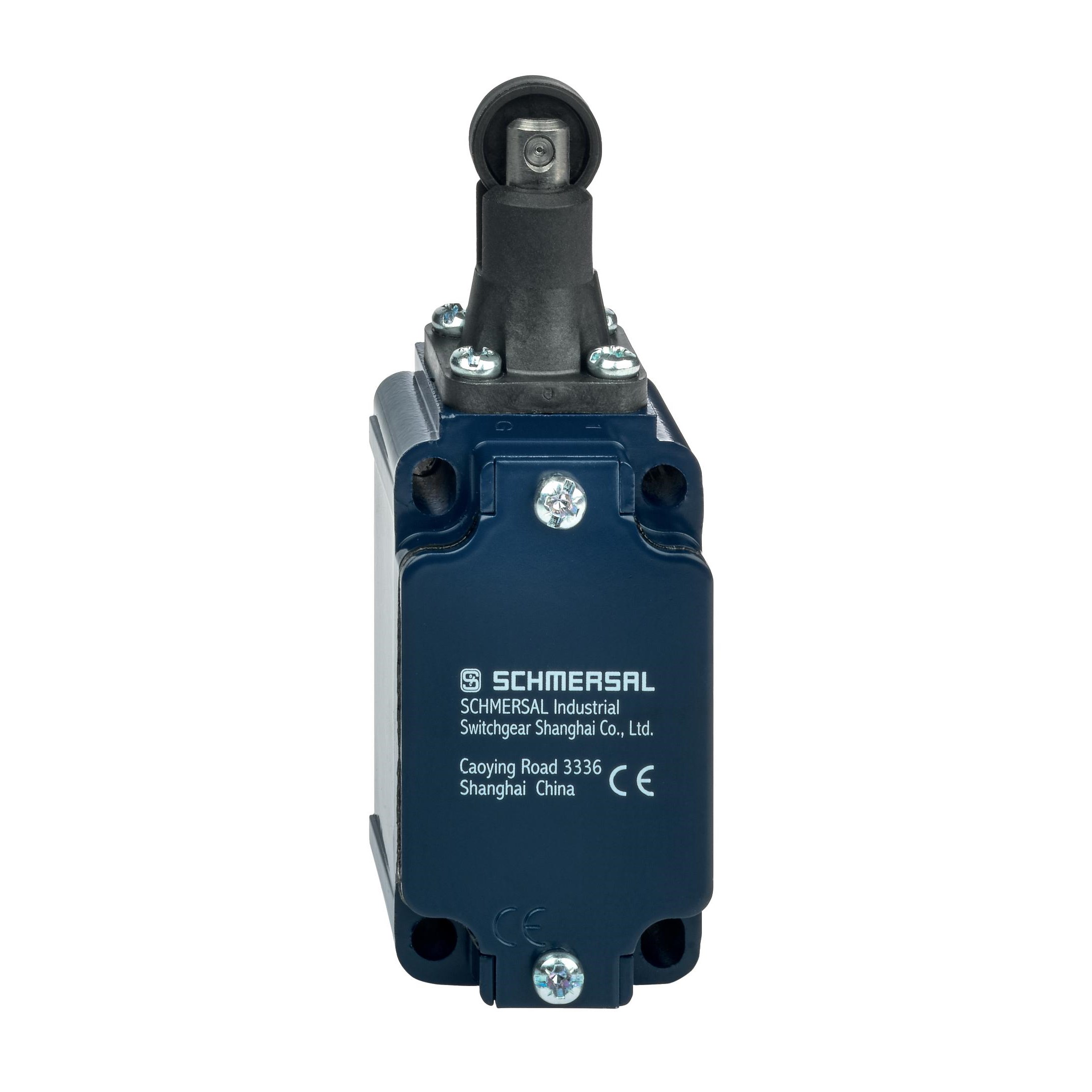

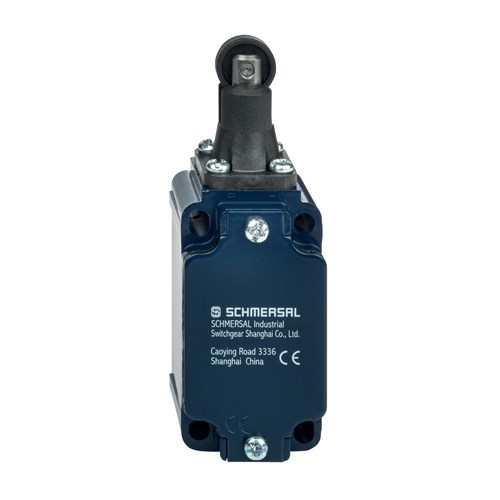

Product Type	EX Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Roller Plunger
Actuating Speed	1 m/s
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Metal, Die Cast Zinc
Mechanical Life	1000000 Cycles
Operational Temperature	-10 to 50 deg C
Rated Current	5 A
Rated Frequency	1800/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	38 mm L x 40.5 mm W x 116.6 mm H
Standards and Approvals	ATEx, CCC Ex, cULus, EN IEC 60947-5-1, EN ISO 14119, IECEx, INMETRO
Terminal Type	Screw terminals
Weight	320 g
Wire Size	13 AWG
