Specifications

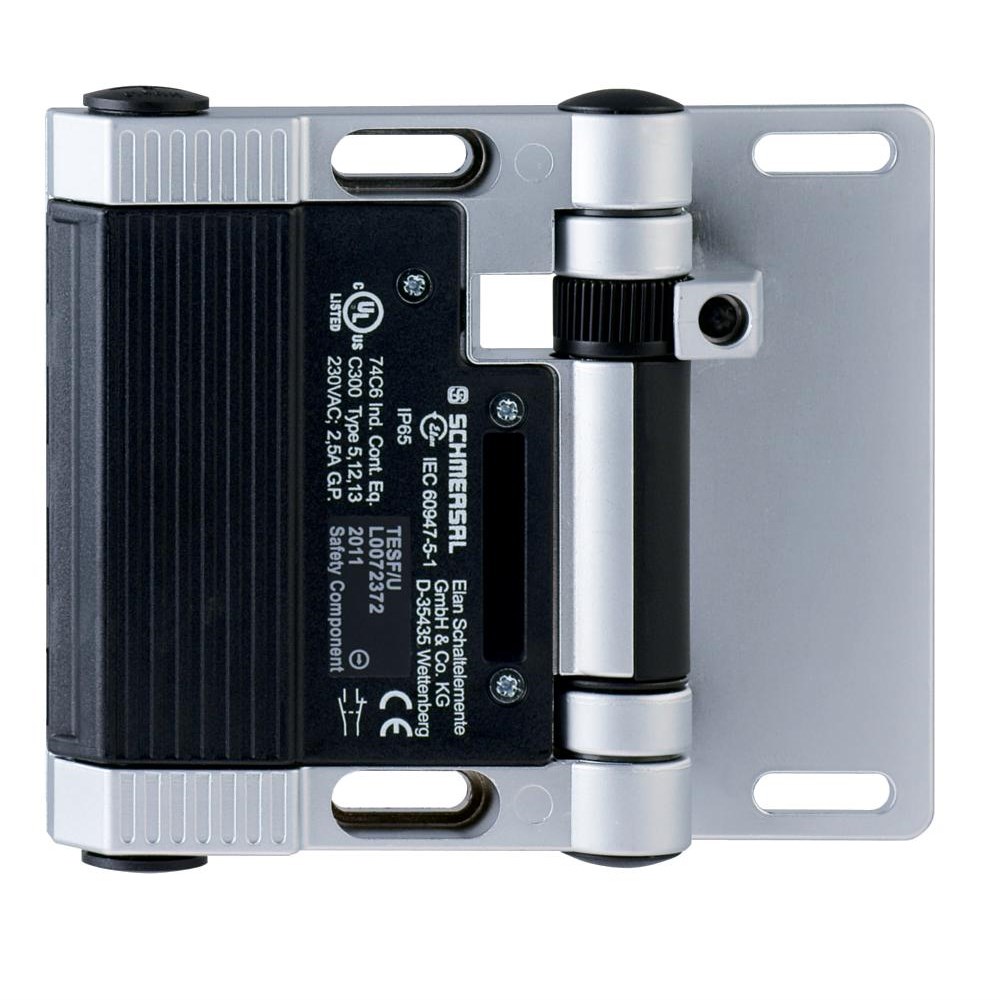

Product Type	Safety Hinge Switch
Brand	SCHMERSAL
Series	TESF
Action	Slow Action
Actuating Speed	2 m/s
Actuator Type	Roller Lever
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP65
Housing Material	Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-25 to 65 deg C
Rated Current	100 A
Rated Insulation Voltage	400 V
Sensor Size	30 mm L x 90 mm H
Standards and Approvals	EN 81-20/EN 81-50
Terminal Type	Screw terminals M20 x 1.5
Weight	297.8 g
