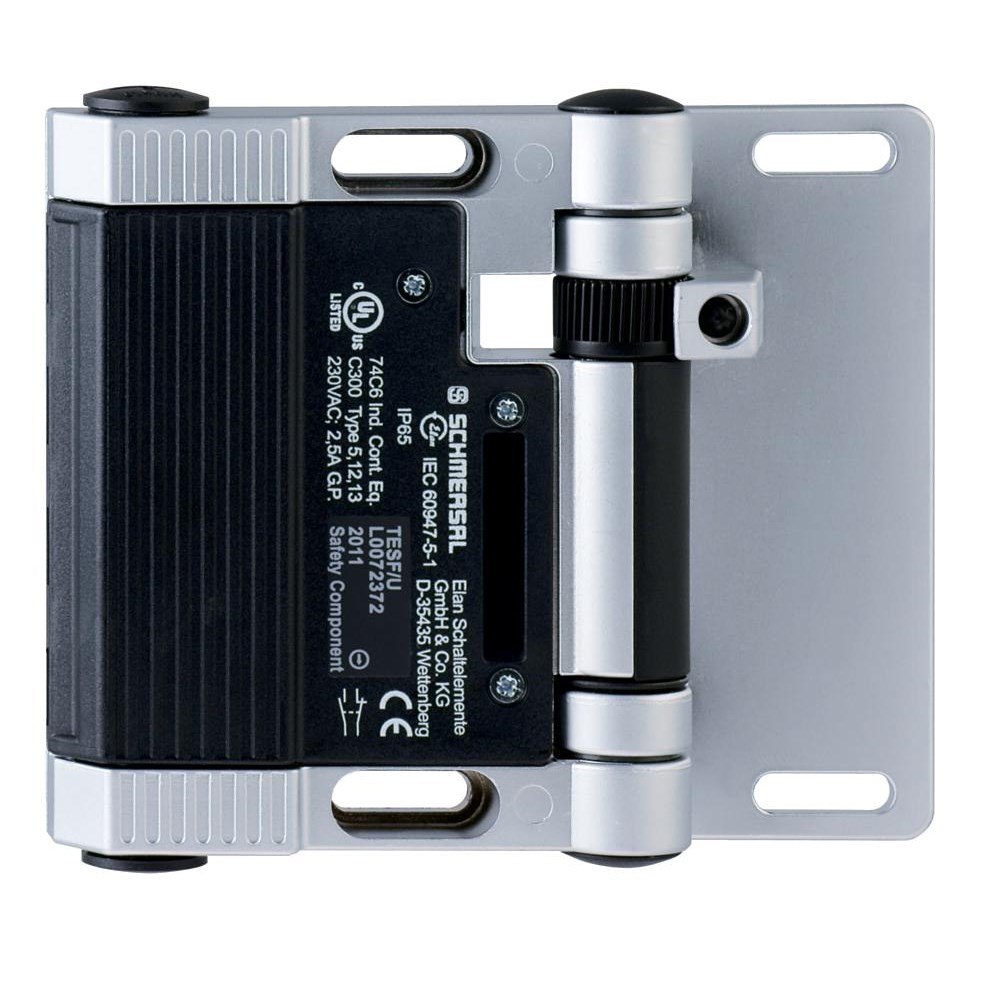

Schmersal 101182063 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101182063

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Safety Hinge Switch
Brand SCHMERSAL
Series TESF
Action Slow Action
Contact Configuration 1NO+1NC
Contact Material Silver Nickel Alloy
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 65 deg C
Rated Current 4 A
Rated Frequency 1200/h
Rated Insulation Voltage 250 V
Rated Voltage 230 VAC
Sensor Size 21.5 mm L x 141 mm W x 115 mm H
Standards and Approvals CCC, cULus, EC002591
Weight 617 g
