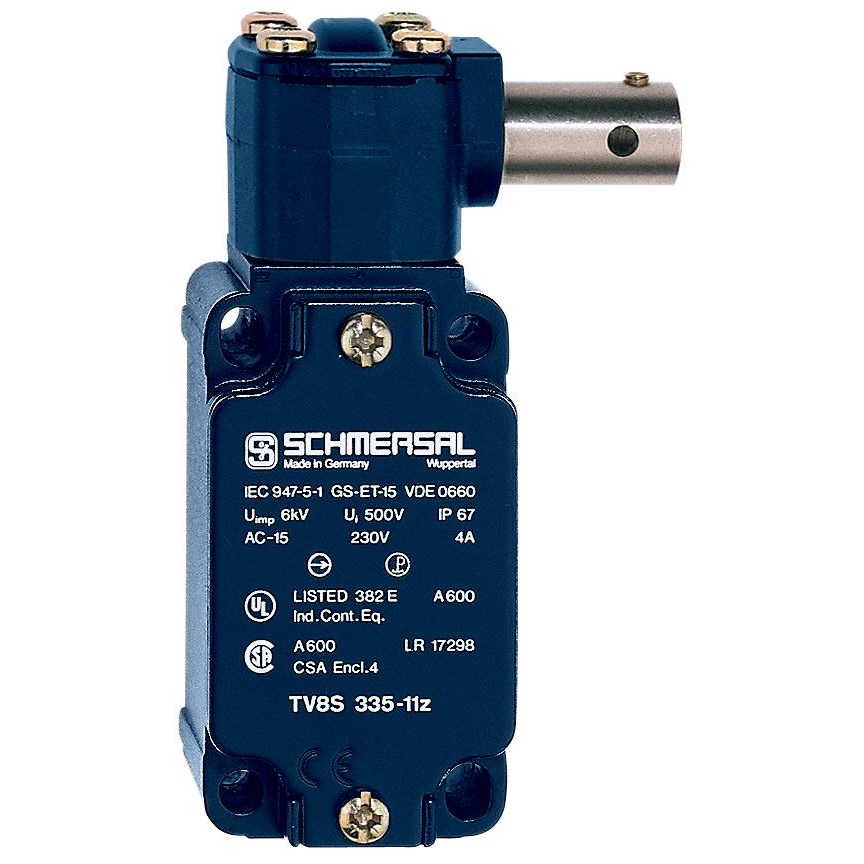

Schmersal 101179250 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101179250

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Safety Hinge Switch
Brand SCHMERSAL
Series TV8S
Action Slow Action
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65
Housing Material Die Cast Light Alloy
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 65 deg C
Rated Current 4 A
Rated Frequency 1000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 65.3 mm L x 40.5 mm W x 107 mm H
Standards and Approvals CCC, cULus, EC002591
Weight 280 g

CAD Blocks & Dimensions
