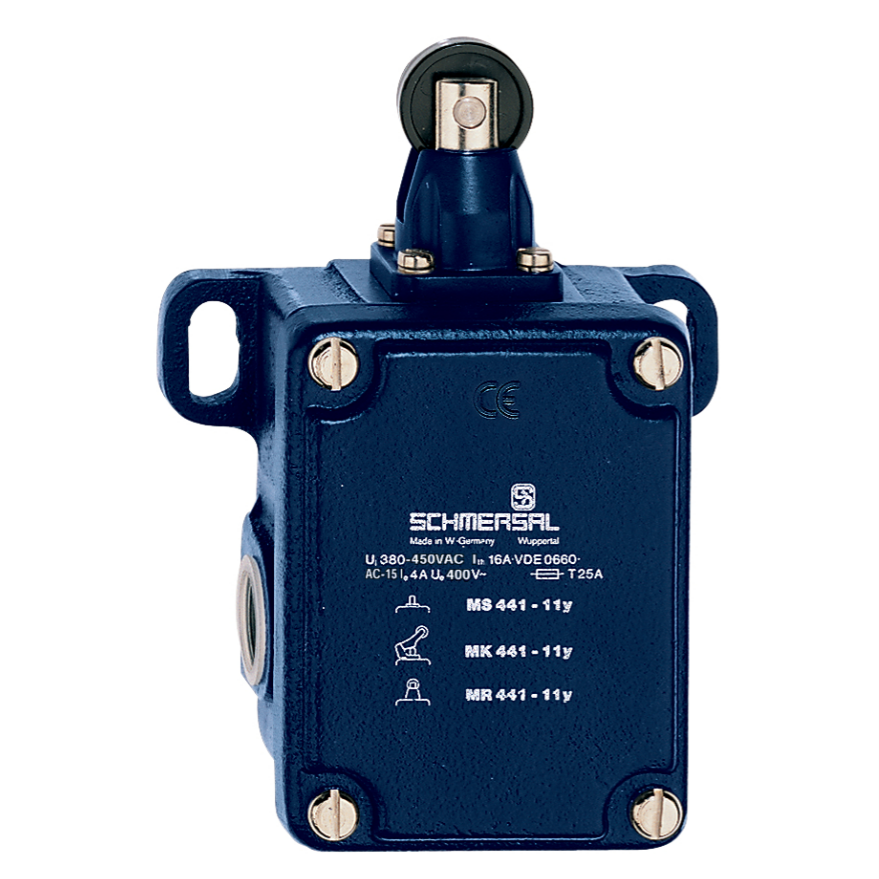

Schmersal 101160083 Position Switch 250VAC 1NO+1NC

Product Code: 101160083

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Position Switch
Brand SCHMERSAL
Action Snap Action
Actuating Element Roller Plunger
Actuating Speed 0.5 m/s
Contact Configuration 1NO+1NC
Contact Material Silver
Degree of Protection IP65
Housing Material Aluminium
Mechanical Life 5000000 Cycles
Operational Temperature -40 to 200 deg C
Rated Current 4 A
Rated Insulation Voltage 400 V
Rated Voltage 250 VAC
Sensor Size 63 mm L x 106 mm W x 145 mm H
Standards and Approvals CCC, EC000030, EN IEC 60947-5-1, INMETRO
Weight 620 g
Wire Size 13 AWG

CAD Blocks & Dimensions
