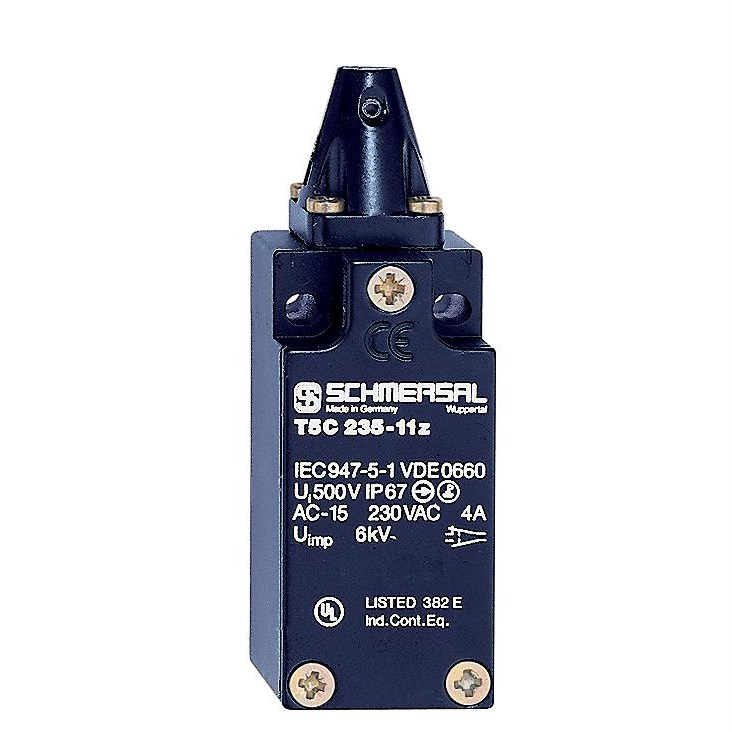

Schmersal 101154990 Flap Safety Switch 230VAC NC

Product Code: 101154990

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Flap Safety Switch
Brand SCHMERSAL
Series T4C235
Action Slow Action
Contact Configuration NC
Contact Material Silver
Degree of Protection IP65
Housing Material Metal, Die Cast Zinc
Mechanical Life 1000000 Cycles
Operational Temperature -25 to 65 deg C
Rated Current 4 A
Rated Frequency 5000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 30 mm L x 30 mm W x 161 mm H
Standards and Approvals CCC, cULus, EC002591
Weight 180 g
