Specifications

Product Type	Exit Sign
Brand	RP-Group
Series	KMU
Degree of Protection	IP43
Depth	35 mm
Height	177 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.55 Kg
Width	251 mm
Mounting	Universal
Battery	LiFePO4 3,2 V/1,5 Ah
Battery connection	Connector
Bridging time	3 h
Dimming function	No
Emergency light blocking	No
Connection cross-section	1.5 mm²
Illuminant	LED
Monitoring	SelfControl (SC)
Operating mode	Non-maintained / maintained
Power maintained	3.2 W
Power max.	3.7 W
Power non-maintained	0.3 W
Switching input	Yes
Supply	Self-contained
Certification	WEEE, CE, 5 years warranty
Operating temperature maintained mode	0 °C to 40 °C
IK Rating	3
Operating temperature non-maintained mode	0 °C to 40 °C
Recognition distance	24 m
Luminous flux emergency	NF
Luminous flux mains	NF
Pictograph	Set
Weight incl. packaging	0.55 Kg
Housing color	White

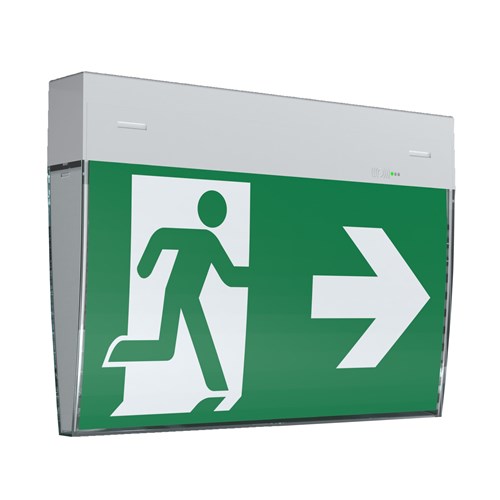

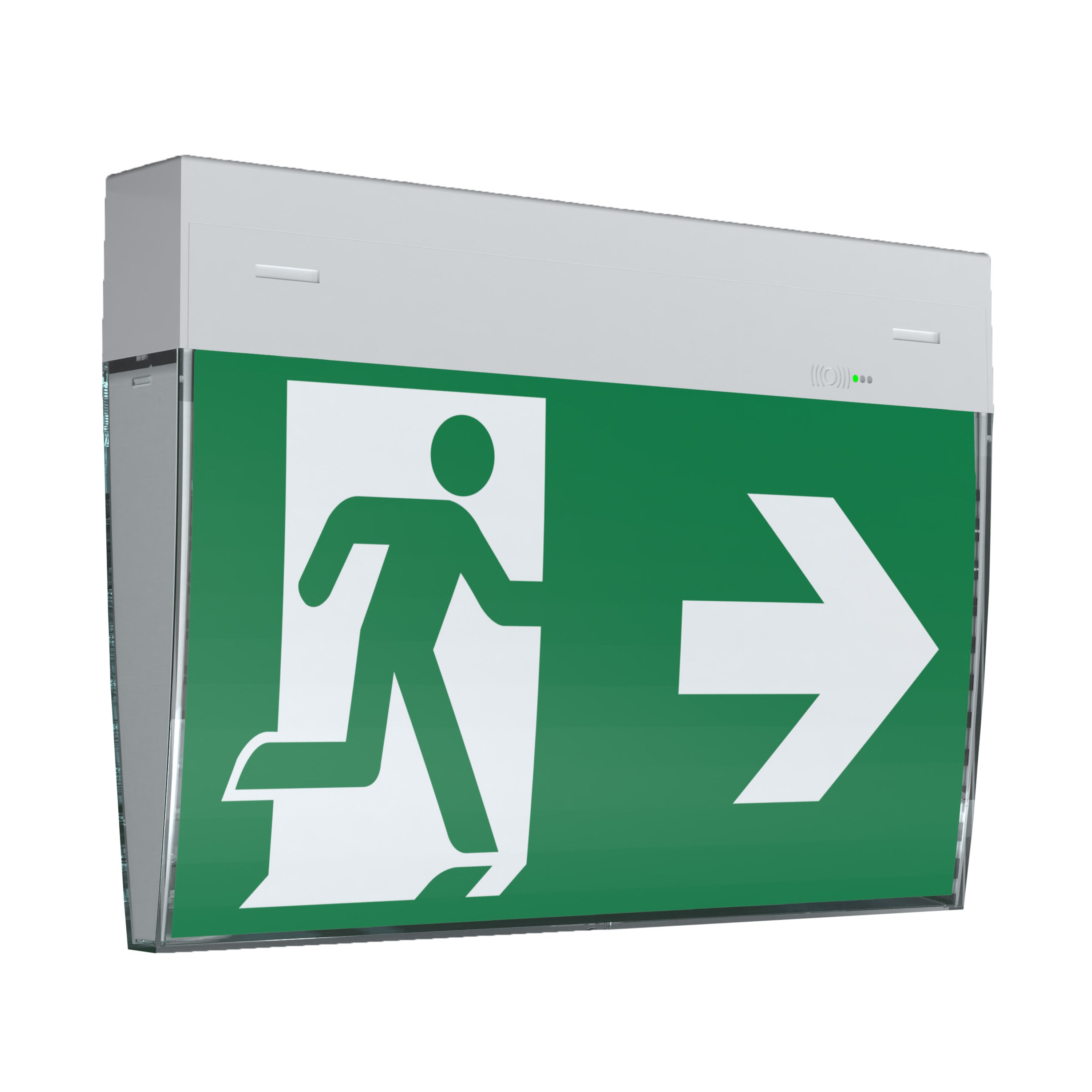

RP-Group KMUK403SC-ANZ Exit Sign Self-Contained Universal 3-hour Battery Power 16m Viewing Distance IP43 White Polycarbonate Housing
