Specifications

Product Type	Unmanaged Industrial PoE Switch
Brand	RED LION
Series	CAT5
Cable Type	FX Single Mode
Connection Type	FX Port-SC
Depth	90 mm
Height	97 mm
Humidity	10-95%
Mounting Type	DIN Rail
Number of 100Mb Ports	1
Number of Ethernet Ports	4
Number of Ports	4 x 10/100 Base-TX RJ-45 1 x 100 Base-FX
Operational Temperature	-40 to 85 deg C
Rated Current	65 mA
Rated Voltage	46-49 VDC
Standards and Approvals	FCC Title 47 Part 15 Class A, ICES-003 Class A, ICES-003- Class A, CE: EN61000-6-2,4; EN61000-4-2,3,4,5,6 EN55011, UL Listed (US) UL508 and ANSI/ISA-12.12.01-2007, Class I, Div 2, Groups A,B,C,D,T4, UL Listed (Canada) C22.2 No. 14-M05, C22.2 No. 213-M1987 Class , Div 2, Haz Loc
Width	38 mm

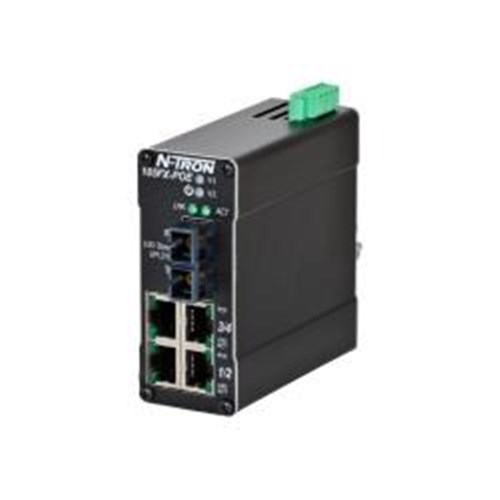

Red Lion 105FXE-SC-15-POE Unmanaged Industrial PoE Switch FX Port-SC 4 46-49VDC DIN Rail Mount
