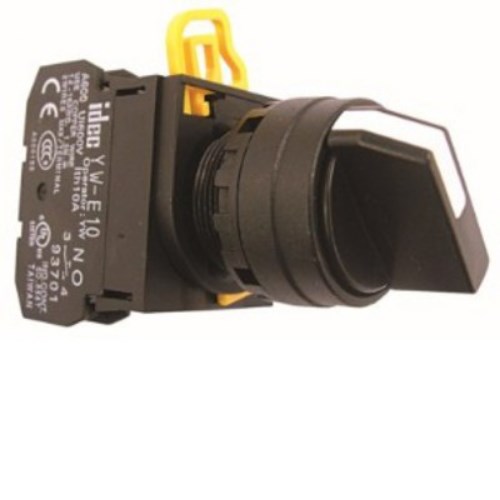

IDEC YW1S-33E20 Selector Switch 3Position 2NO Round Plastic M3.5 Screw Terminal 30mm W 41.4mm H 69.8mm D

Product Code: YW1S-33E20

1

Specifications

Product Type	Selector Switch
Brand	IDEC
Series	YW
Bezel Material	Plastic
Bezel Shape	Round
Bezel Type	Plastic
Contact Configuration	2NO
Degree of Protection	IP20, IP65
Depth	69.8 mm
Height	41.4 mm
Insulation Resistance	100 MOhm
Mode of Operation	Two-Way Spring Return
Mounting Hole Diameter	22 mm
Number of Positions	3
Operational Temperature	-20 to 55 deg C
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	600 V
Standards and Approvals	CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type	M3.5 Screw
Tightening Torque	1 N-m
Width	30 mm

Documents

IPD Product Catalogue V17

IDEC Catalogue

Certificate

EU Declaration of Conformity
