Specifications

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	800 A
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	280 mm
Handle Type	Pistol
Height	250 mm
Includes	Handle, Shaft
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	3
Number of Switches	1
Padlockable	Padlockable in O-Position
Power Loss	40 W
Rated Current	800 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Power	450 kW
Rated Short Time Withstand Current	20 kA
Rated Voltage	415 VAC
Suitable For Use With	Distribution Board Installation
Terminal Type	Bolt
Transition Type	Open
Weight	17.7 kg
Width	311 mm

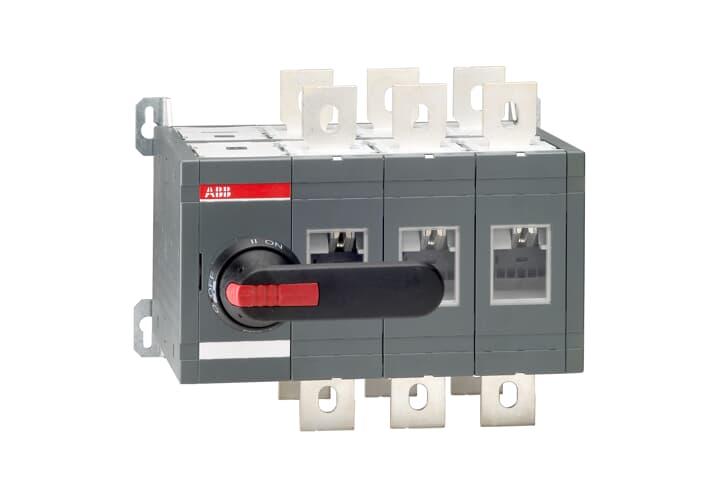

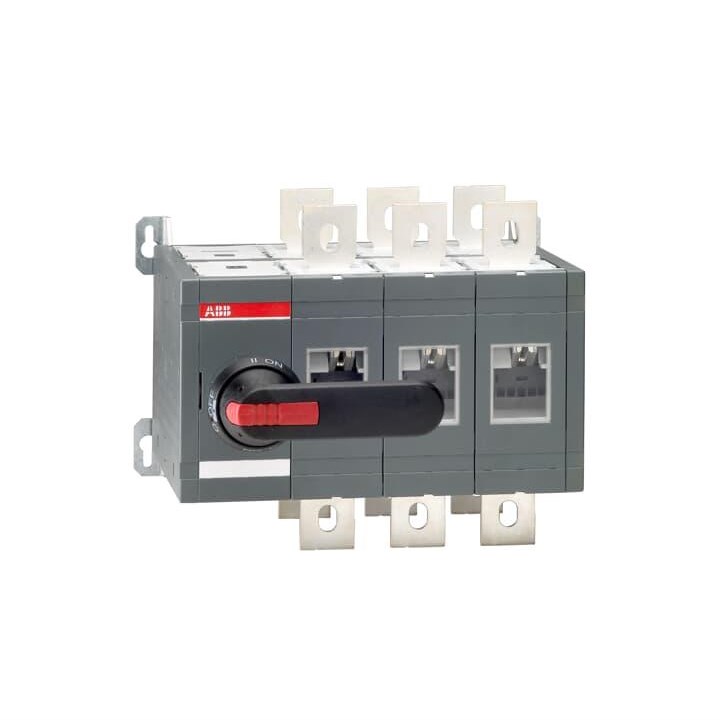

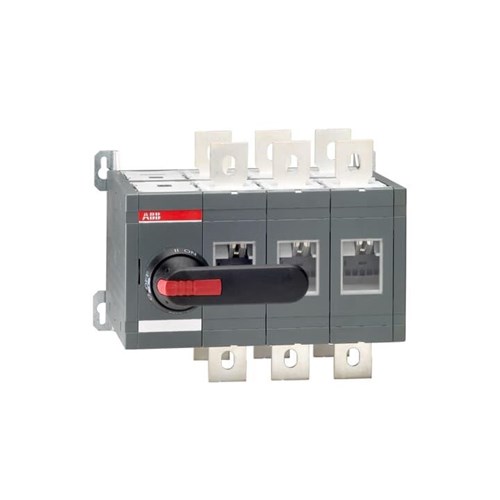

ABB OT800E03CP Changeover Switch 800A 415VAC IP20 4-Hole Front Mount 3-P
