Specifications

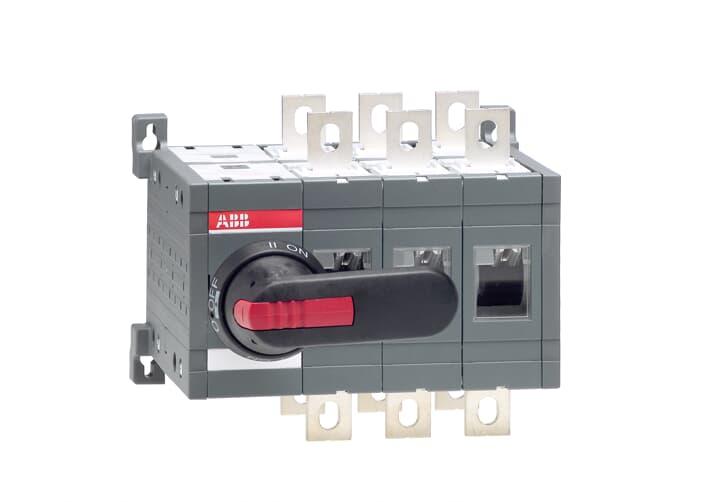

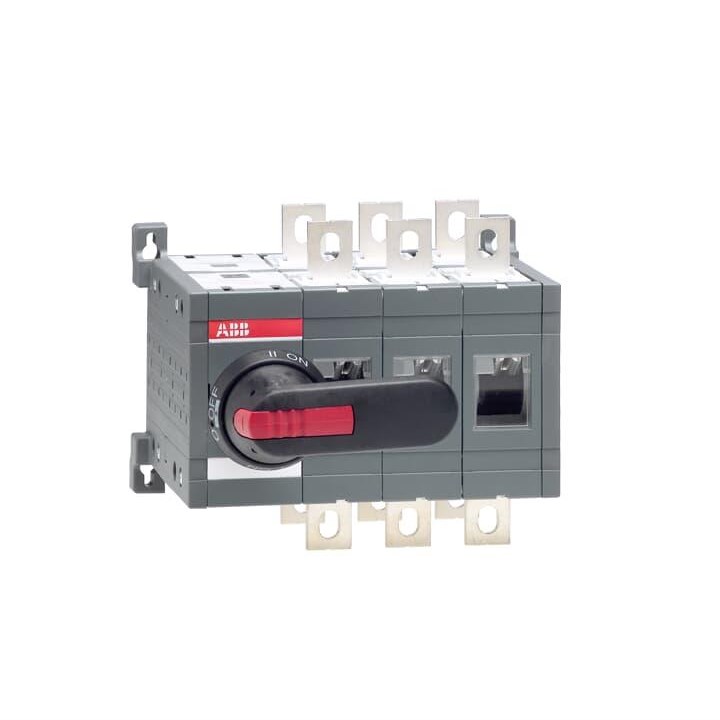

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	400 A
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	203 mm
Handle Type	Pistol
Height	185 mm
Includes	Handle, Shaft
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	3
Number of Switches	1
Padlockable	Padlockable in O-Position
Power Loss	10 W
Rated Current	400 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Power	220 kW
Rated Short Time Withstand Current	15 kA
Rated Voltage	415 VAC
Standards and Approvals	RoHS, REACH, CE
Suitable For Use With	Distribution Board Installation
Terminal Type	Bolt
Tightening Torque	44 N-m
Transition Type	Open
Weight	5.9 kg
Width	221 mm
