Specifications

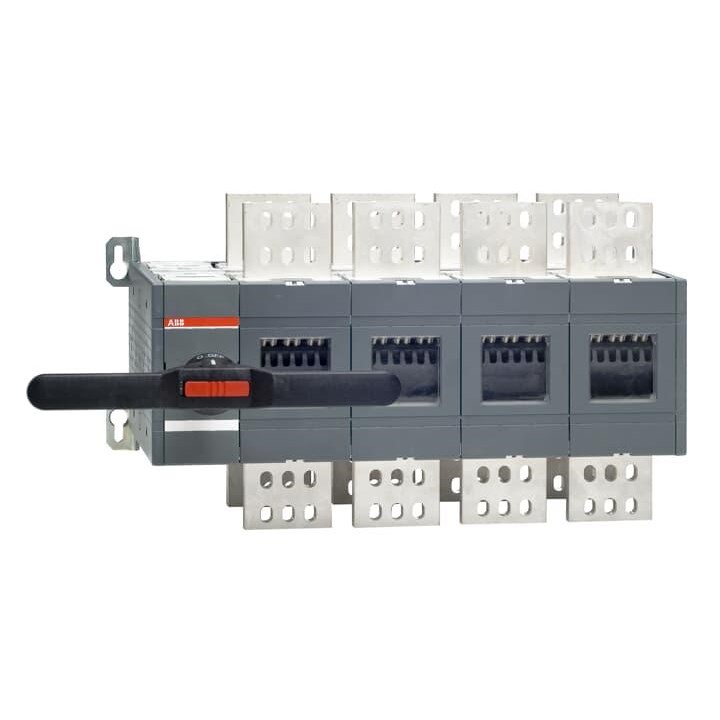

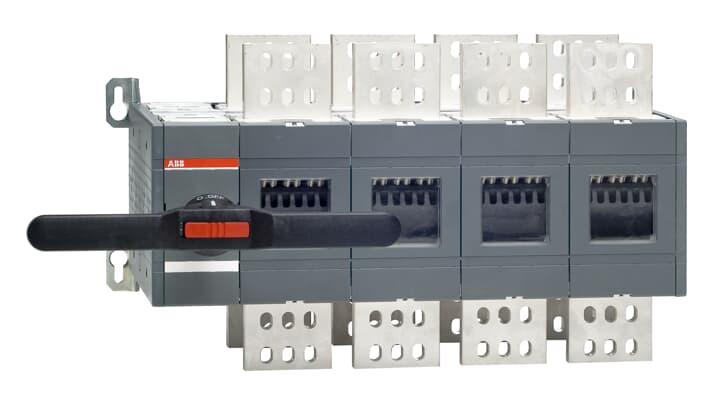

Product Type	Changeover Switch
Brand	ABB
Air Thermal Current	2500 A
Control Element Colour	Black
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	335 mm
Handle Type	Pistol
Height	377 mm
Includes	Handle, Shaft
Indicators	I-O-II
Interlockable	Yes
Line Terminals Position	Top In-Bottom Out, Bottom In-Top Out
Mode of Operation	Front
Mounting Type	4-Hole Front Mount
NEMA Rating	NEMA 1
Number of Poles	4
Number of Switches	1
Padlockable	Padlockable in O-Position
Power Loss	85 W
Rated Current	2500 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Short Time Withstand Current	55 kA
Rated Voltage	415 VAC
Standards and Approvals	RoHS, REACH, CE
Suitable For Use With	Distribution Board Installation
Terminal Type	Screw Clamp
Tightening Torque	75 N-m
Transition Type	Open
Weight	86 kg
Width	664 mm
