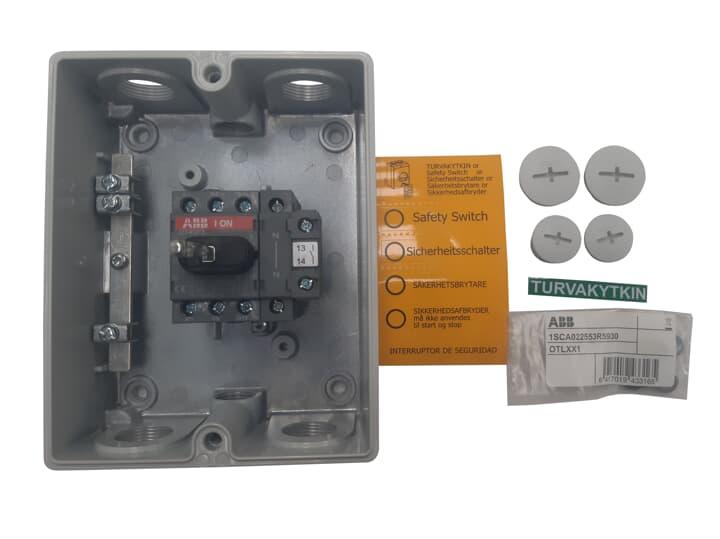

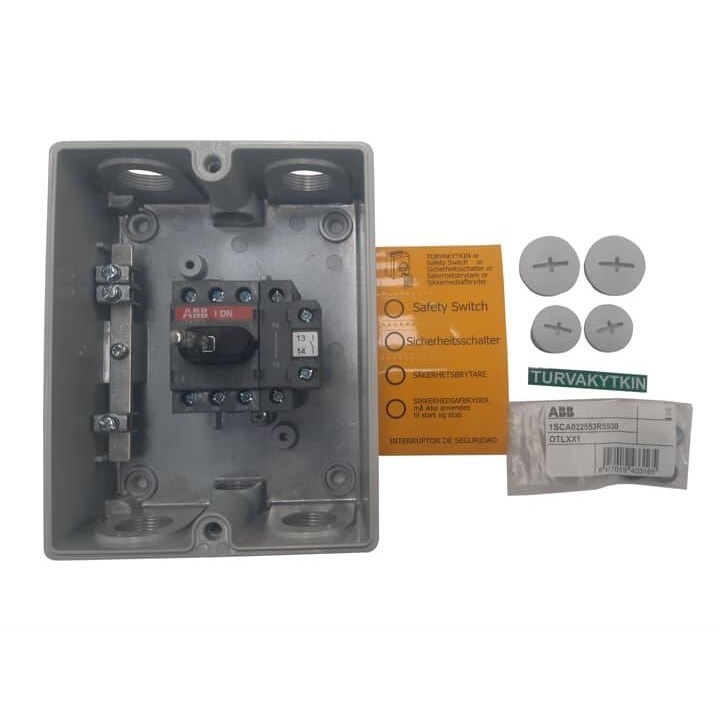

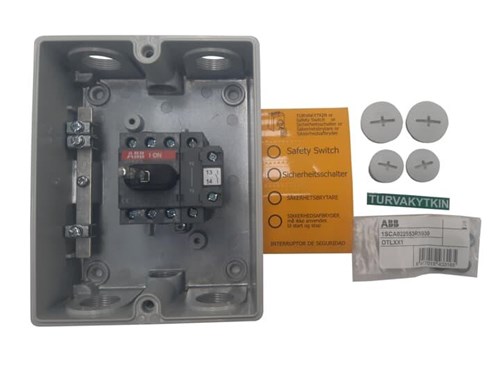

ABB OKA20S3RF2 Enclosed Switch 3 20A 750V 11 kW Screw Terminal

Product Code: OKA20S3RF2

1

Specifications

Product Type	Enclosed Switch
Brand	ABB
Cable Cross Section	0.75-10 sq-mm
Control Element Colour	Red
Degree of Pollution	IP3
Degree of Protection	IP65
Handle Colour	Red
Handle Type	Round
Height	165 mm
Length	103 mm
Line Terminals Position	Top In-Bottom Out
Number of Poles	3
Power Loss	0.6 W
Rated Current	32 A
Rated Insulation Voltage	750 V
Rated Power	11 kW
Rated Short Circuit Current	6.5 kA
Rated Voltage	750 V
Rated Withstand Current	0.5 kA
Short Circuit Capacity	0.705 kA
Standards and Approvals	IEC 60947-1, -3
Terminal Type	Screw Clamp
Tightening Torque	0.8 N-m
Weight	1.25 kg
Width	130 mm

Documents

IPD Product Catalogue V17

ABB Brochure

Instructions

Certificate

EU Declaration of Conformity

REACH Certification

RoHS Certification
