Specifications

Product Type	Joystick Operator Switch Without Latching
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Momentary
Illumination	Illuminated
Lamp Colour	Green
Lamp Type	Integrated LED
Mode of Operation	Momentary
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Voltage	380-415 VAC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

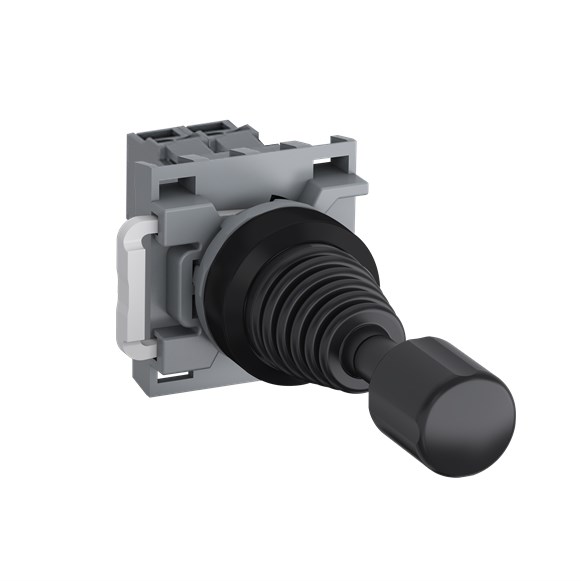

ABB MPJO411 Illuminated Joystick Operator Switch Without Latching 380-415VAC 22mm dia Mounting Hole 1NO+1NC
