Specifications

Product Type	Vertical Joystick Operator Switch With Latching
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Momentary
Illumination	Illuminated
Lamp Colour	Red
Lamp Type	Integrated LED
Mode of Operation	Momentary
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Voltage	48-60 VAC/VDC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

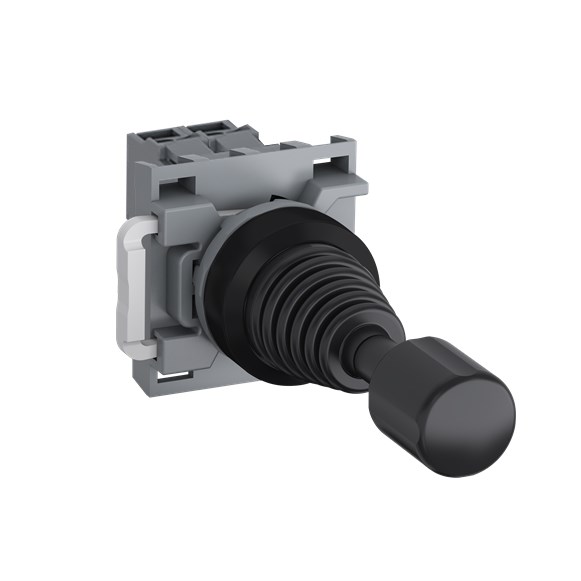

ABB MPJLO2V11 Illuminated Vertical Joystick Operator Switch With Latching 48-60VAC/VDC 22mm dia Mounting Hole 1NO+1NC
