Specifications

Product Type	Joystick Operator Switch With Latching
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Maintained
Illumination	Illuminated
Lamp Colour	Yellow
Lamp Type	Integrated LED
Mode of Operation	Maintained
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Voltage	12 VDC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

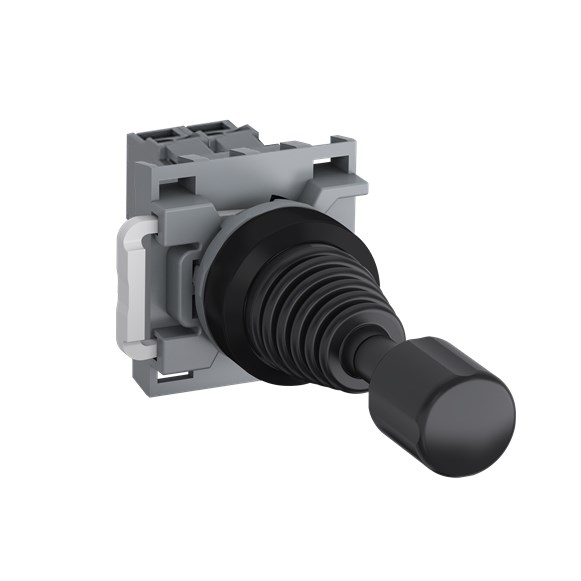

ABB MPJLA411 Illuminated Joystick Operator Switch With Latching 12VDC 22mm dia Mounting Hole 1NO+1NC
