Specifications

Product Type	Vertical Joystick Operator Switch
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Maintained
Illumination	Illuminated
Lamp Colour	Clear
Lamp Type	Integrated LED
Mode of Operation	Maintained
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Voltage	12 VDC
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

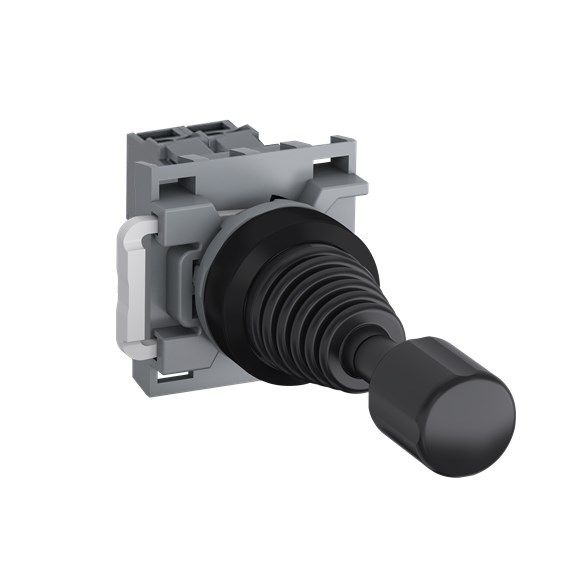

ABB MPJLA2V20 Illuminated Vertical Joystick Operator Switch 12VDC 22mm dia Mounting Hole 2NO
