Specifications

Product Type	Joystick Operator Switch
Brand	ABB
Actuator Type	Pilot Light Head
Connecting Capacity	1 x 0.75-2.5 sq-mm Flexible, 2 x 0.75-2.5 sq-mm Flexible, 1 x 0.75-2.5 sq-mm Solid, 2 x 0.75-2.5 sq-mm Solid
Connection Type	Screw Clamp
Degree of Pollution	IP3
Degree of Protection	IP20, IP66, IP67, IP69K
Function	Maintained
Illumination	Illuminated
Lamp Colour	Red
Lamp Type	BA9S
NEMA Rating	NEMA 1, 12, 13, 3R, 4, 4x
Operational Temperature	-25 to 70 deg C
Rated Current	1 A, 1.5 A
Rated Frequency	50/60 Hz
Rated Voltage	240 V
Storage Temperature	-40 to 85 deg C
Suitable For Use With	3 W Max Bulb
Terminal Type	Screw
Tightening Torque	0.9 N-m
Weight	0.018 kg
Wire Stripping Length	8 mm

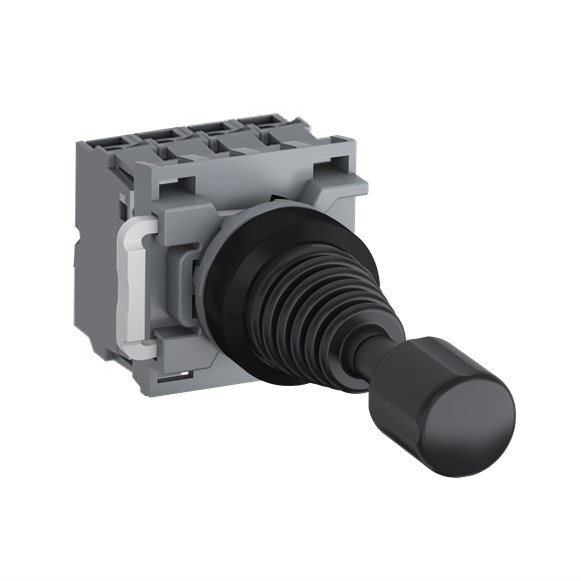

ABB MPJA440 Illuminated Joystick Operator Switch 240 V 22mm dia Mounting Hole 4NO
