Specifications

Product Type	Changeover Switch
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Colour	Grey
Conductor Material	Copper
Connecting Capacity	Solid 1 x 1 - 6mm² Solid 2 x 2.5mm² Flexible 1 x 0.75 - 2 x 2.5mm²
Contact Configuration	0NC+2NO
Degree of Protection	IP20
Depth	68 mm
Height	85 mm
Operational Temperature	-25 to 55 deg C
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Voltage	250 VAC
Standards and Approvals	EN60669-1, VDE0632-1, IEC60068-2-2, IEC60068-2-1, IEC60068-2-38, UL508
Storage Temperature	-40 to 70 deg C
Switch Type	Double Interrupting Contacts
Tightening Torque	1.2-1.5 N-m
Width	18 mm

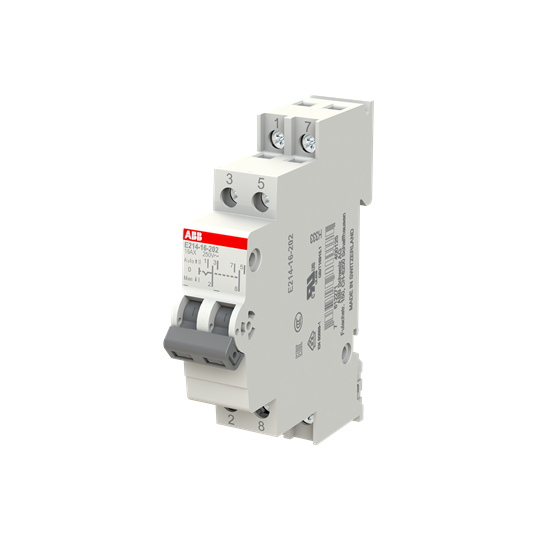

ABB E214-16-202 Group Switch SPDT 16A 250VAC 2NO
