Specifications

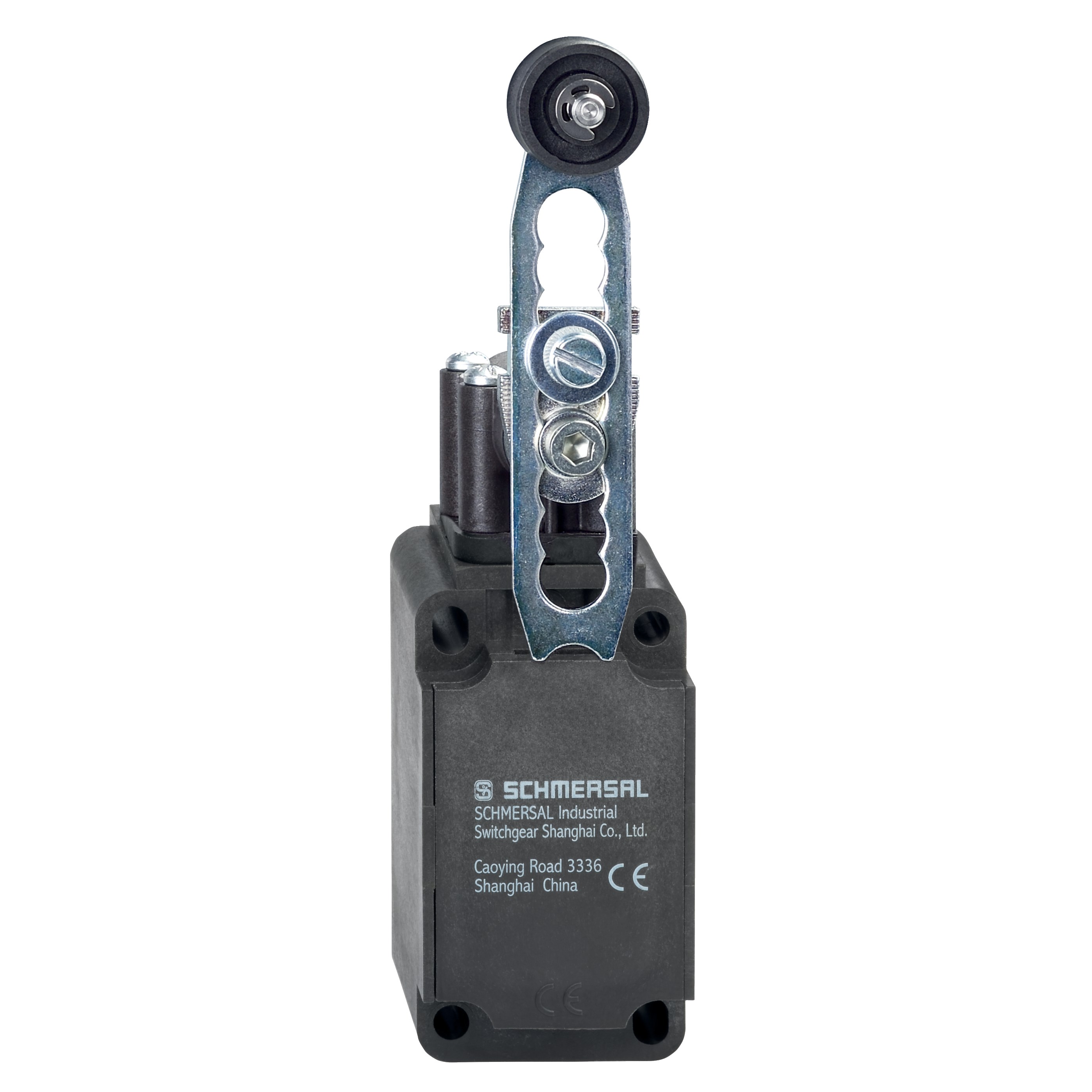

Product Type	Position Switch with Safety Function
Brand	Schmersal
Actuating Element	Roller Lever
Actuating Speed	2.5 m/s
Contact Material	Silver
Degree of Protection	IP65, IP67
Height	171.5 mm
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Length	57 mm
Mechanical Life	30000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Voltage	230 VAC
Sensor Size	57 mm L x 40.5 mm W x 171.5 mm H
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC000030, EN IEC 60947-5-1, EN ISO 13849-1
Weight	275 g
Width	40.5 mm
