Specifications

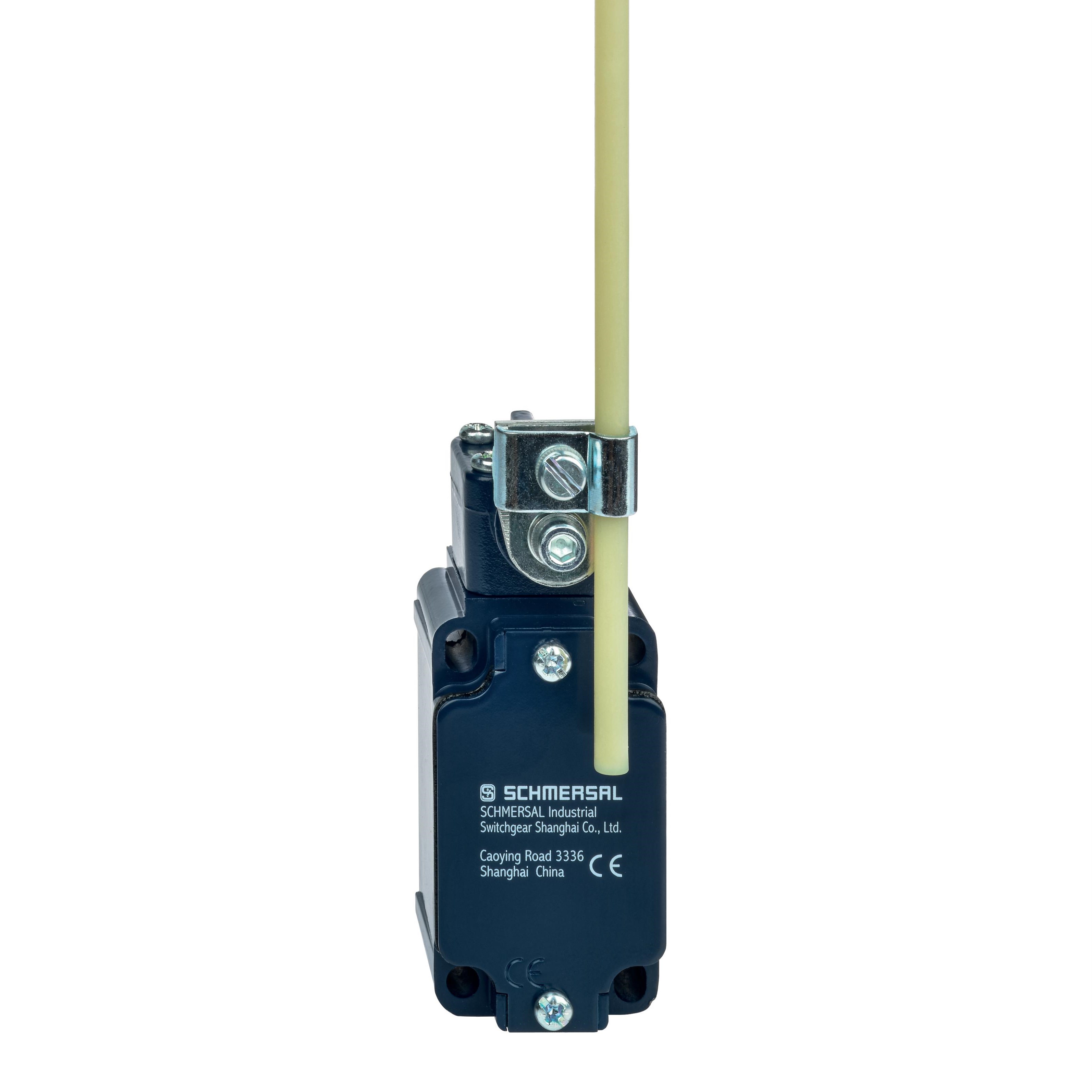

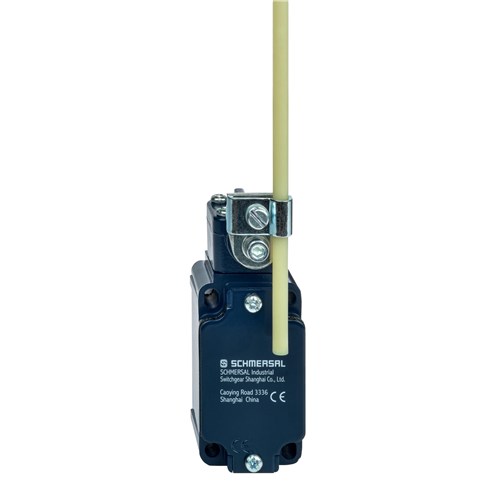

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Rod Lever
Actuating Speed	2.5 m/s
Connector Type	Female Connector (Side B)
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP67
Enclosure Coating Material	Painted
Housing Material	Die Cast Light Alloy
Mechanical Life	30000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC, 24 VDC
Sensor Size	38 mm L x 40 mm W
Standards and Approvals	EN ISO 13849-1
