Specifications

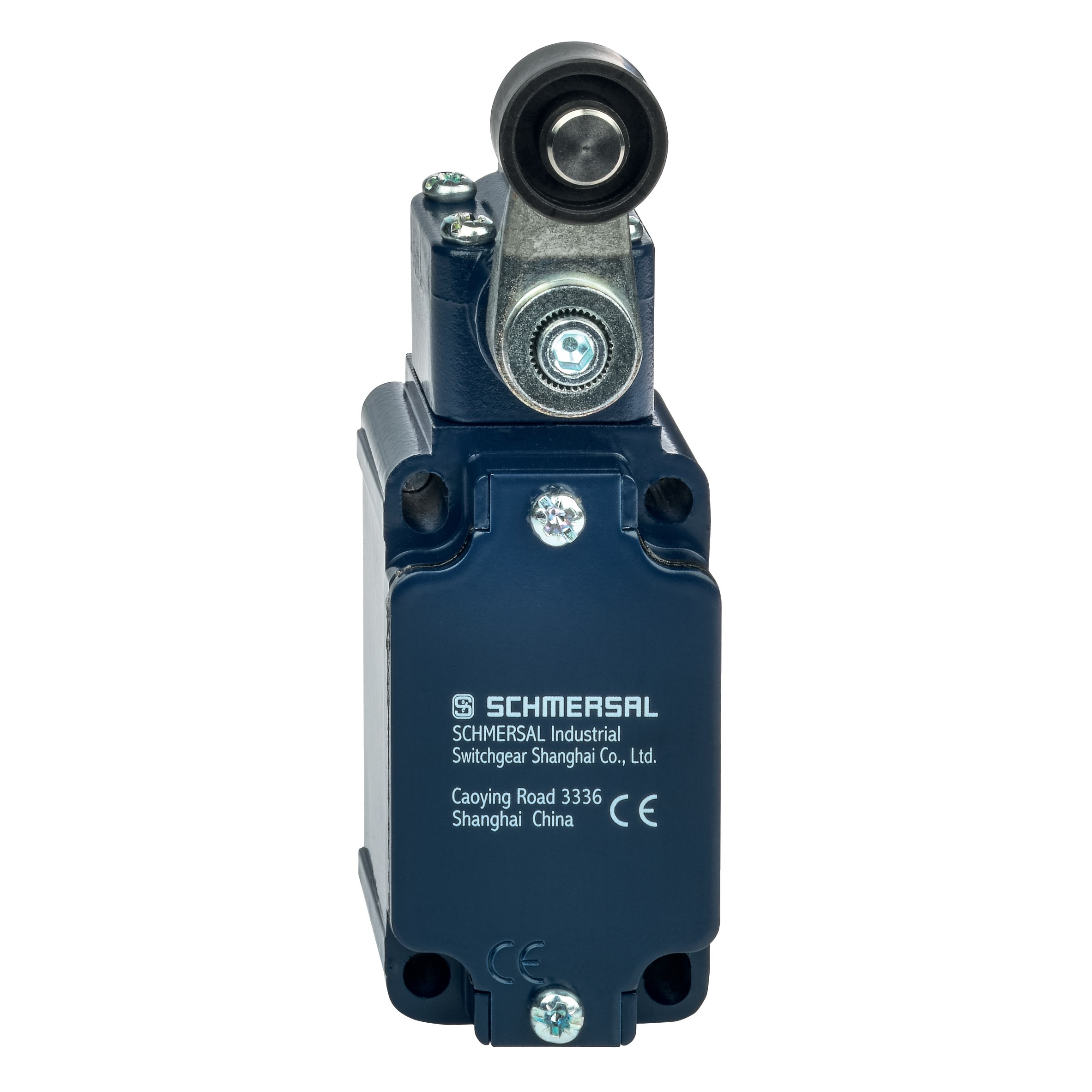

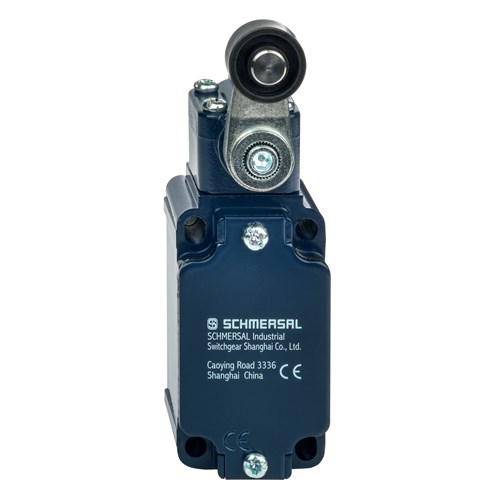

Product Type	Position Switch with Safety Function
Brand	Schmersal
Action	Slow Action
Actuating Element	Roller Lever
Actuating Speed	2.5 m/s
Actuator Type	A
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Die Cast Light Alloy
Mechanical Life	30000000 Cycle
Operational Temperature	-30 to 80 deg C
Rated Current	10 A
Rated Insulation Voltage	500 V
Sensor Size	60.6 mm L x 40.5 mm W x 129.5 mm H
Short Circuit Protection	1000 A
Standards and Approvals	BG-GS-ET-15 EN ISO 13849-1 EN IEC 60947-5-1
