Specifications

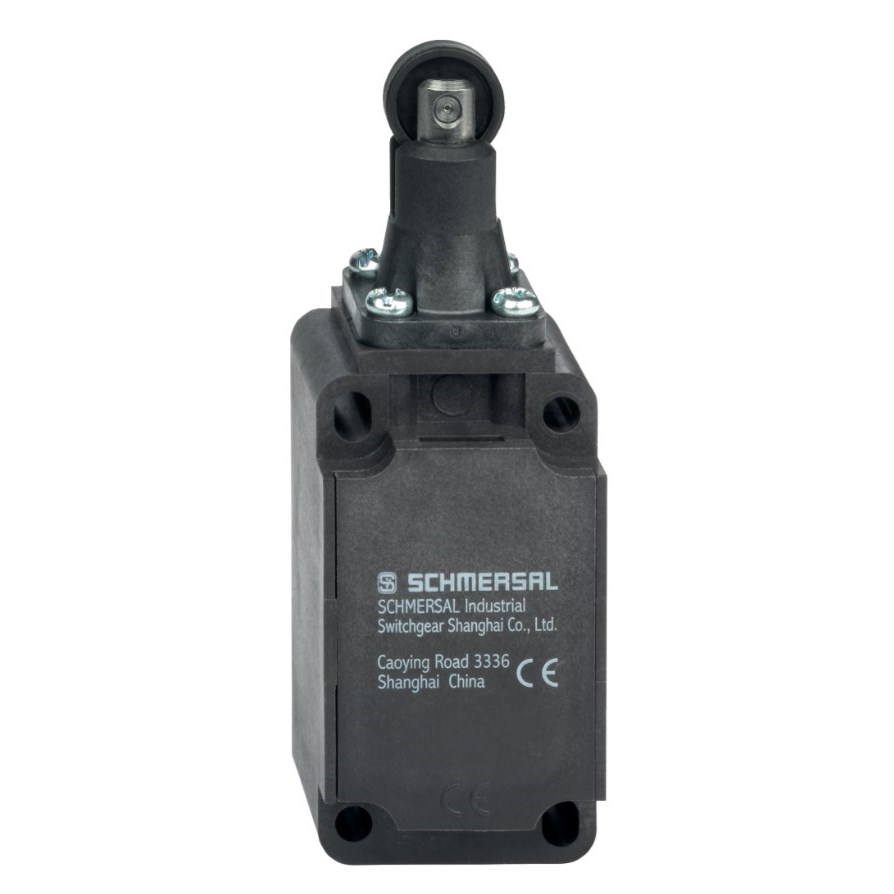

Product Type	Limit Switch
Brand	Schmersal
Action	Snap Action
Actuating Element	Roller Plunger
Actuating Force	17 N
Actuating Speed	0.5 m/s
Actuator Type	C
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	30000000 Cycle
Operational Temperature	-30 to 80 deg C
Rated Current	10 A
Rated Insulation Voltage	500 V
Sensor Size	38 mm L x 40.5 mm W x 116.5 mm H
Short Circuit Protection	1000 A
Standards and Approvals	BG-GS-ET-15 EN ISO 13849-1 EN IEC 60947-5-1
