Specifications

Product Type	Position Switch
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Offset Roller Lever
Actuating Force	9 N
Actuating Speed	160 mm/min
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	20000000 Cycles
Operational Temperature	80 deg C
Rated Current	1000 A
Rated Force	19 N
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC
Sensor Size	30 mm L x 30 mm W x 89.5 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

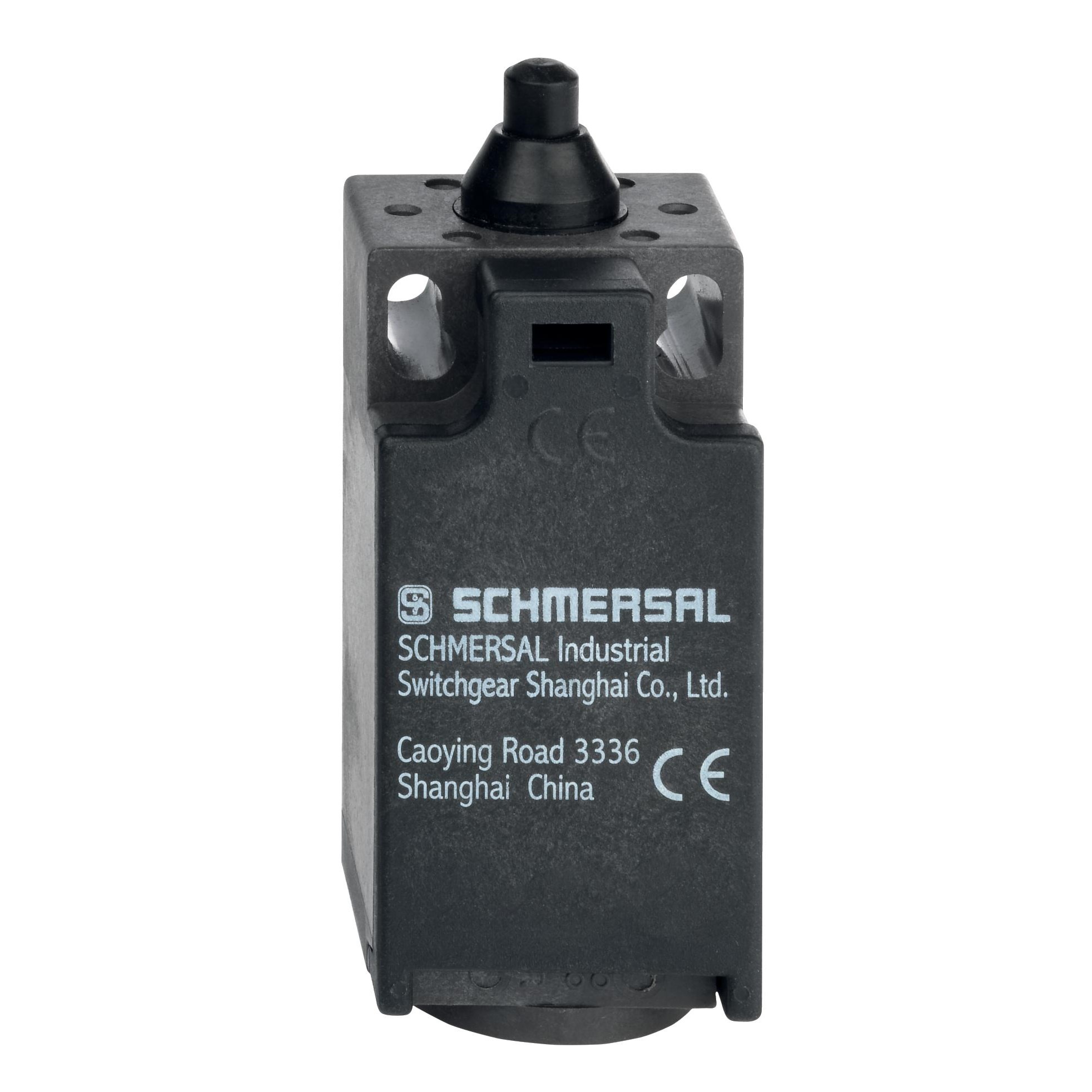

Schmersal 151159061 Position Switch 230VAC NC
