Specifications

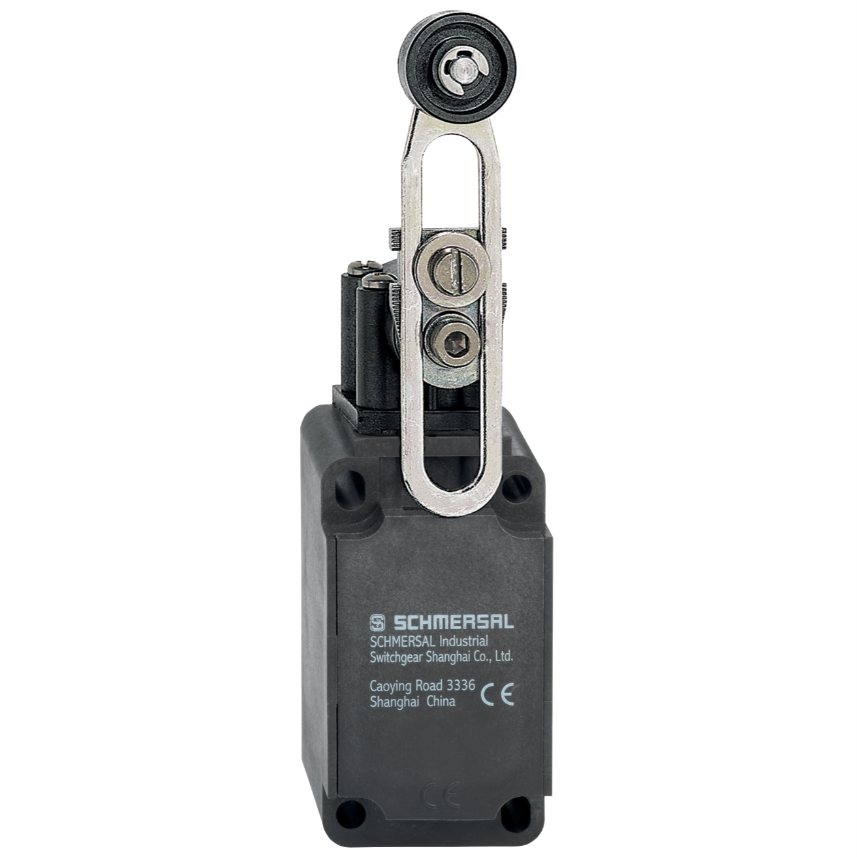

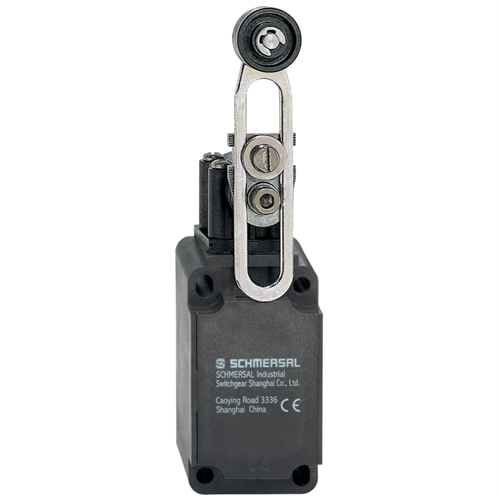

Product Type	Position switch
Brand	SCHMERSAL
Action	Snap Action
Actuating Element	Roller Lever
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP65, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Insulation Voltage	500 V
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
Weight	0.165 kg
