Specifications

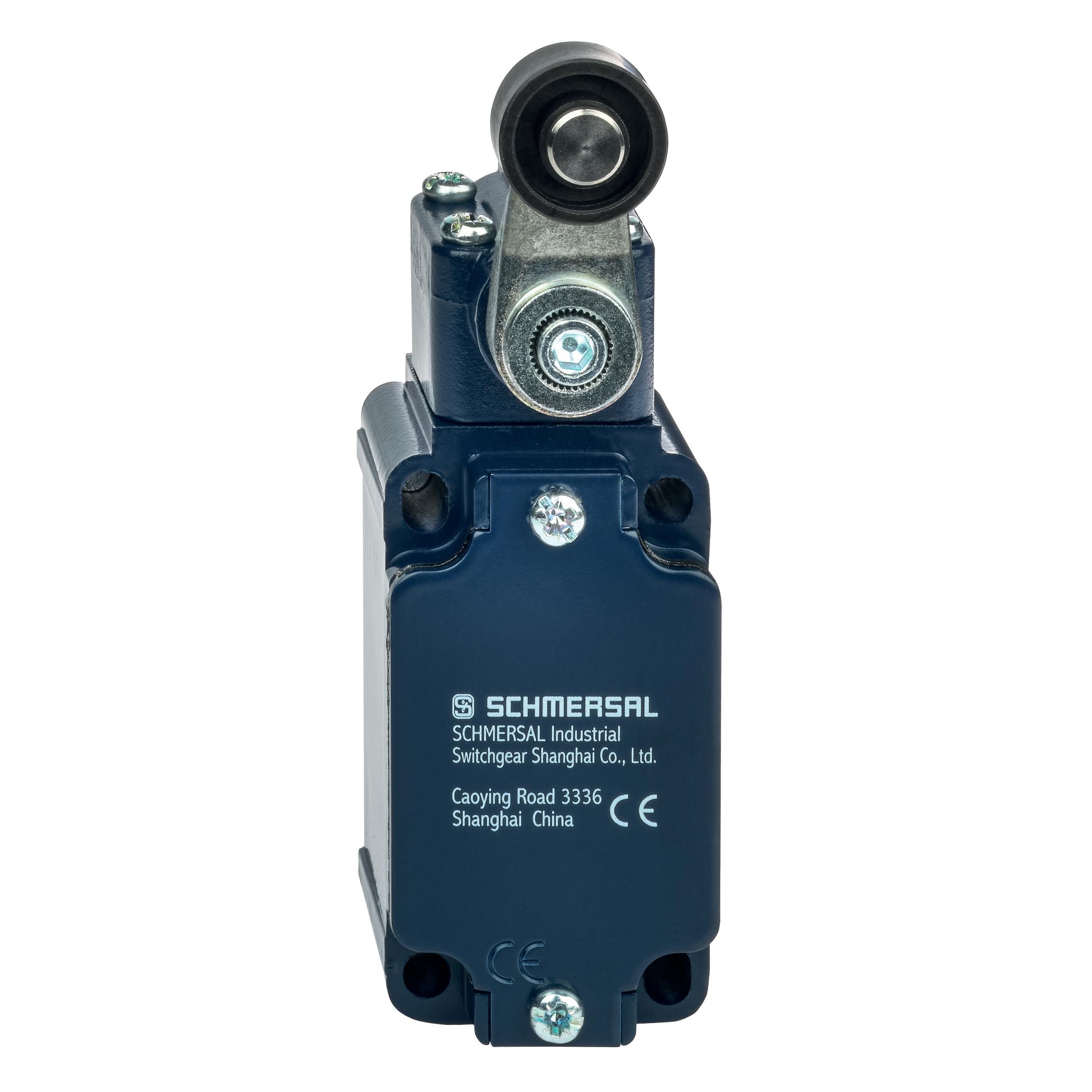

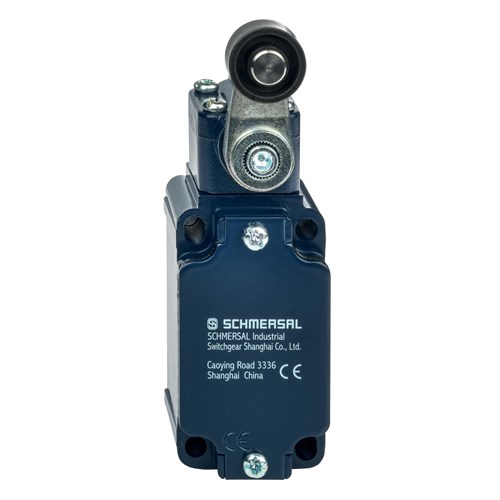

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Roller Lever
Actuating Speed	2.5 m/s
Actuator Type	A - According to EN 50041
Connector Type	Female Connector (Side B)
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP67
Enclosure Coating Material	Painted
Housing Material	Die Cast Light Alloy
Mechanical Life	30000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Insulation Voltage	500 V
Rated Voltage	230 VAC, 24 VDC
Sensor Size	60.55 mm L x 40 mm W x 129.5 mm H
Standards and Approvals	EN ISO 13849-1
