Specifications

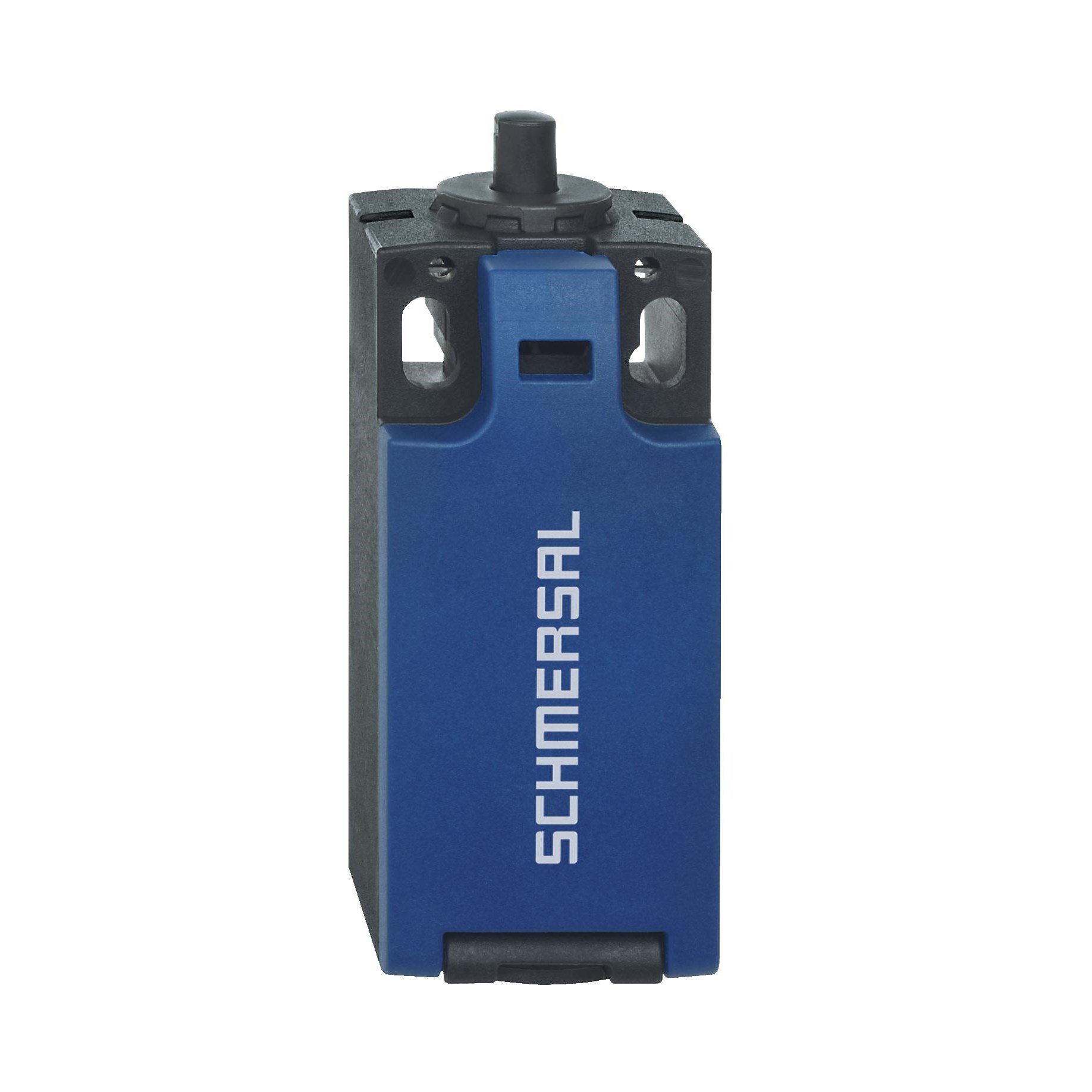

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Plunger Shape S200
Actuating Speed	60 mm/min
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP66
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	3 A
Rated Frequency	5000/h
Rated Insulation Voltage	300 V
Rated Voltage	240 VAC, 24 VDC
Sensor Size	32.5 mm L x 31 mm W x 75.5 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
