Specifications

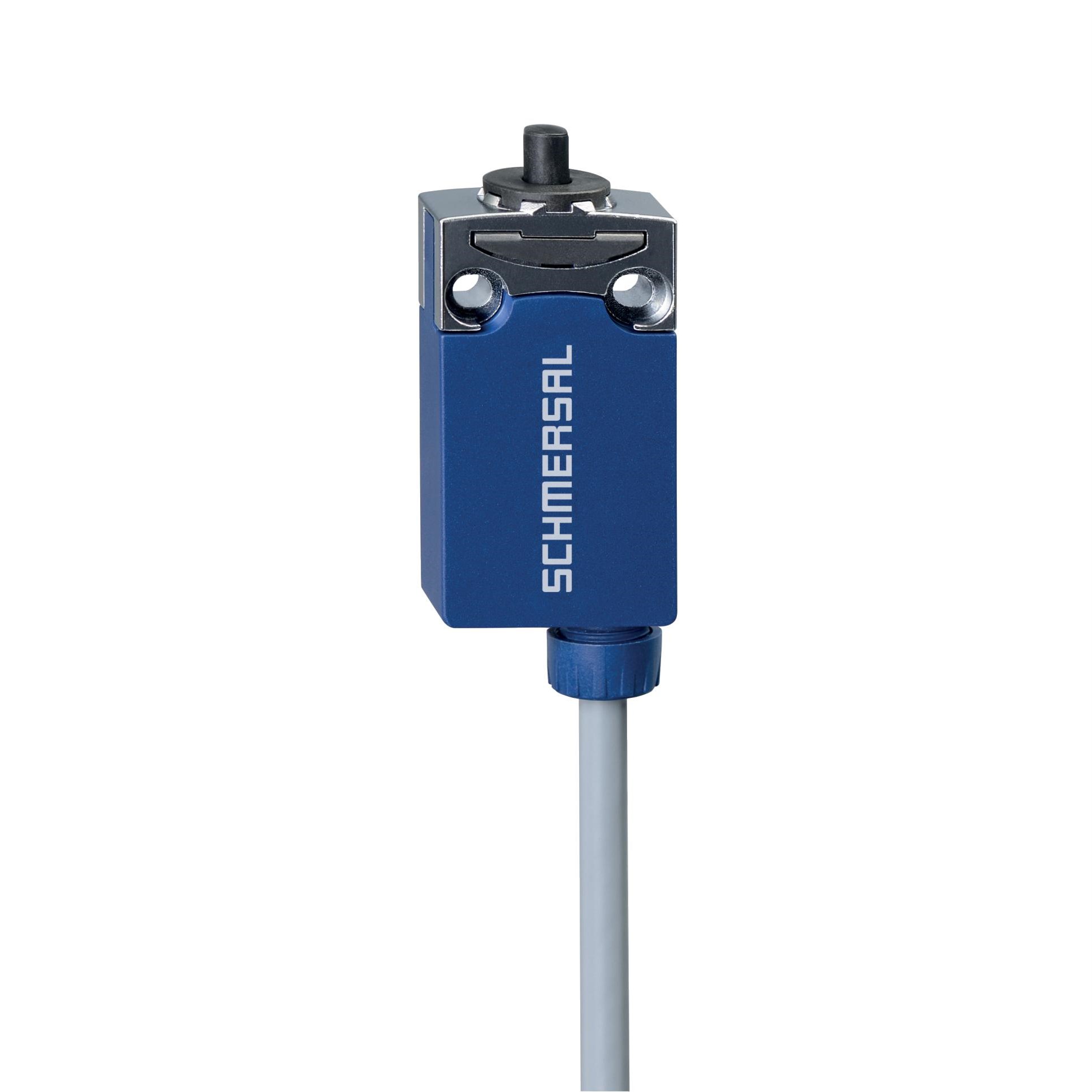

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Plunger Shape S200
Actuating Speed	0.5 m/s
Contact Configuration	2NO+1NC
Contact Material	Silver
Degree of Protection	IP66, IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	10000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	1.5 A
Rated Frequency	5000/h
Rated Insulation Voltage	300 V
Rated Voltage	240 VAC
Sensor Size	16.6 mm L x 31 mm W x 64 mm H
Standards and Approvals	CCC, cULus, EC000030, EN IEC 60947-5-1
Terminal Type	Screw terminals M20 x 1.5
Weight	57 g
