Specifications

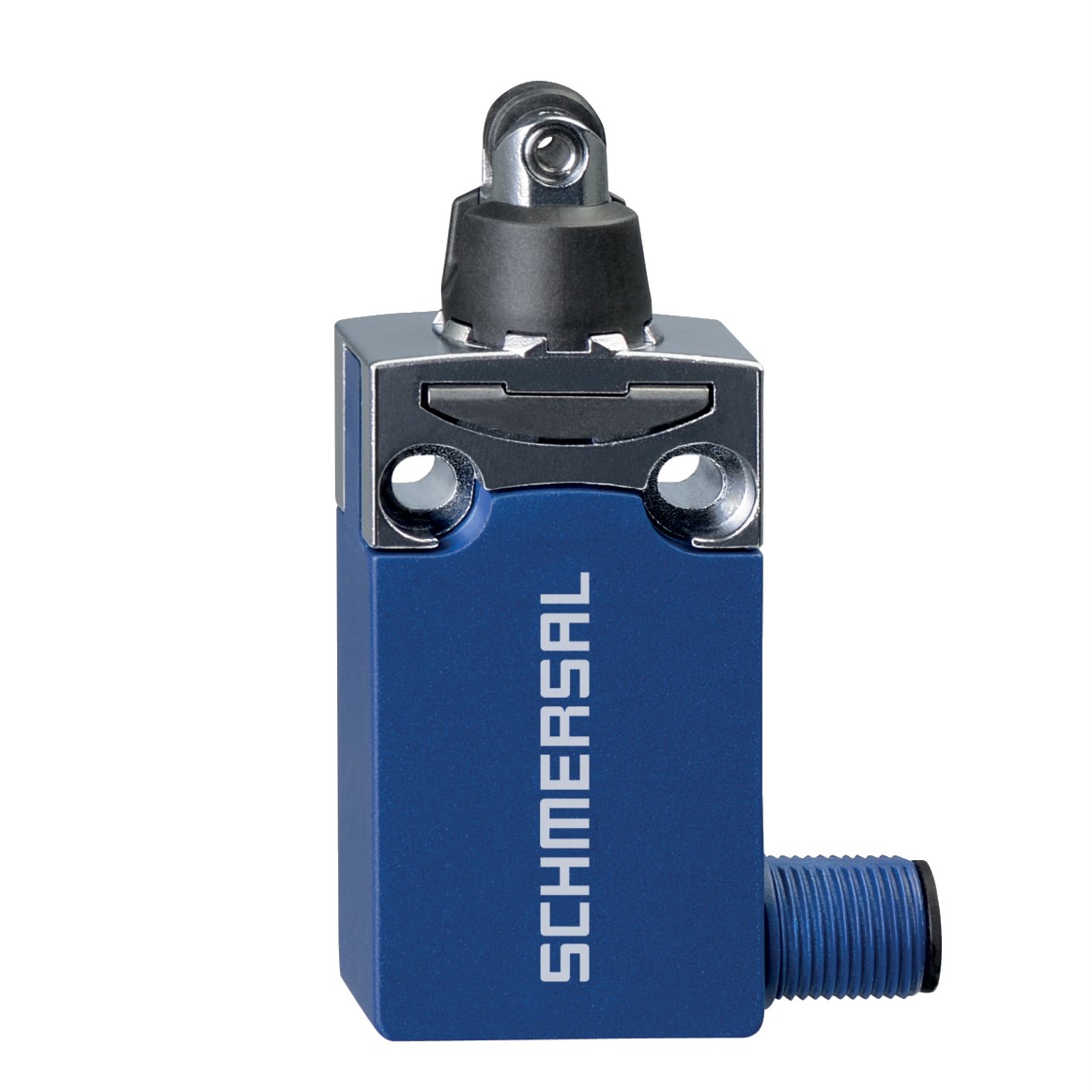

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Action	Slow Action
Actuating Element	Roller Plunger
Actuating Speed	0.5 m/s
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP66, IP67
Height	174.1 mm
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Length	16.6 mm
Mechanical Life	10000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	1.5 A
Rated Frequency	5000/h
Rated Insulation Voltage	300 V
Rated Voltage	240 VAC
Sensor Size	16.6 mm L x 31 mm W x 74.1 mm H
Standards and Approvals	CCC, cULus, EN IEC 60947-5-1
Weight	140 g
Width	31 mm
Wire Size	0.5 mm
