Specifications

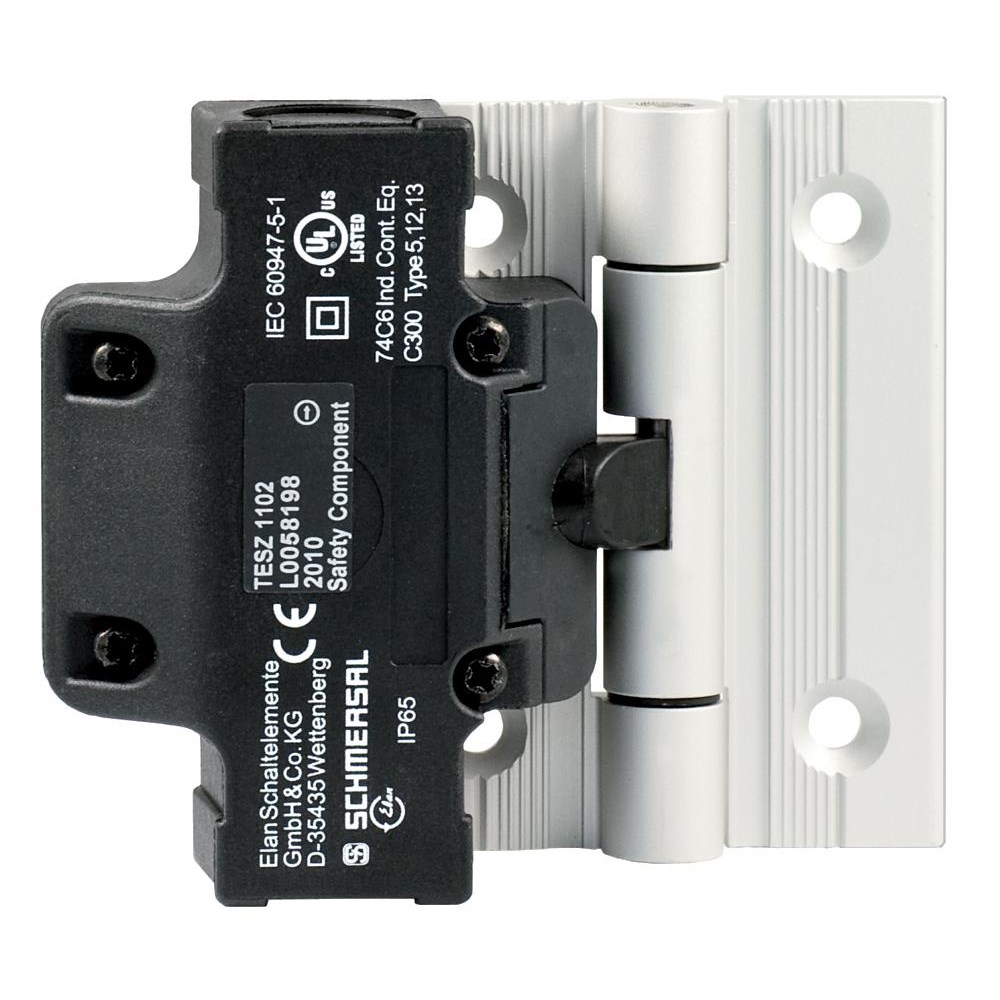

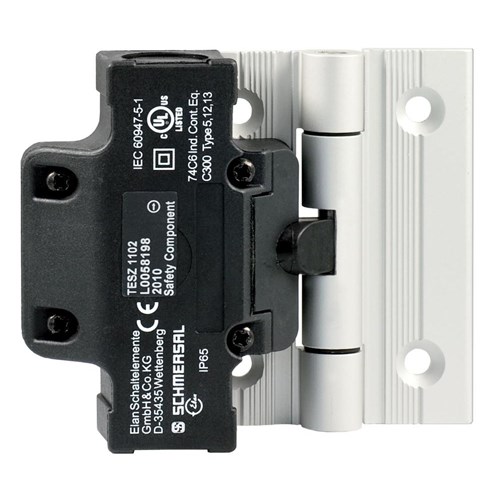

Product Type	Safety Hinge Switch
Brand	SCHMERSAL
Series	TESZ
Action	Slow Action
Contact Configuration	1NO+1NC
Contact Material	Silver
Degree of Protection	IP65
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000 Cycles
Operational Temperature	-25 to 65 deg C
Rated Current	4 A
Rated Frequency	120/h
Rated Insulation Voltage	250 V
Rated Voltage	230 VAC
Sensor Size	36 mm L x 111.5 mm W x 92 mm H
Standards and Approvals	BG-GS-ET-15, CCC, cULus, EC002591, EN IEC 60947-5-1
Weight	420 g
