Specifications

Product Type	Exit Sign
Brand	RP-Group
Series	KSH
Degree of Protection	IP54
Depth	34 mm
Height	174 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.67 Kg
Width	250 mm
Mounting	Universal
Battery	LiFePO4 3,2 V/1,6 Ah
Battery connection	Connector
Bridging time	3 h
Dimming function	No
Emergency light blocking	No
Connection cross-section	2.5 mm²
Illuminant	LED
Monitoring	SelfControl (SC)
Operating mode	Non-maintained / maintained
Power maintained	3.3 W
Power max.	4.6 W
Power non-maintained	1 W
Switching input	Yes
Supply	Self-contained
Certification	WEEE, AS/NZS3820, CISPR15, AS/NZS2293.3, RoHS, RCM, C0:D5-C90:E4
Operating temperature maintained mode	-10 °C to 40 °C
IK Rating	3
Operating temperature non-maintained mode	-10 °C to 40 °C
Recognition distance	24 m
Luminous flux emergency	190 lm
Luminous flux mains	190 lm
Pictograph	Set
Weight incl. packaging	0.75 Kg
Housing color	Black

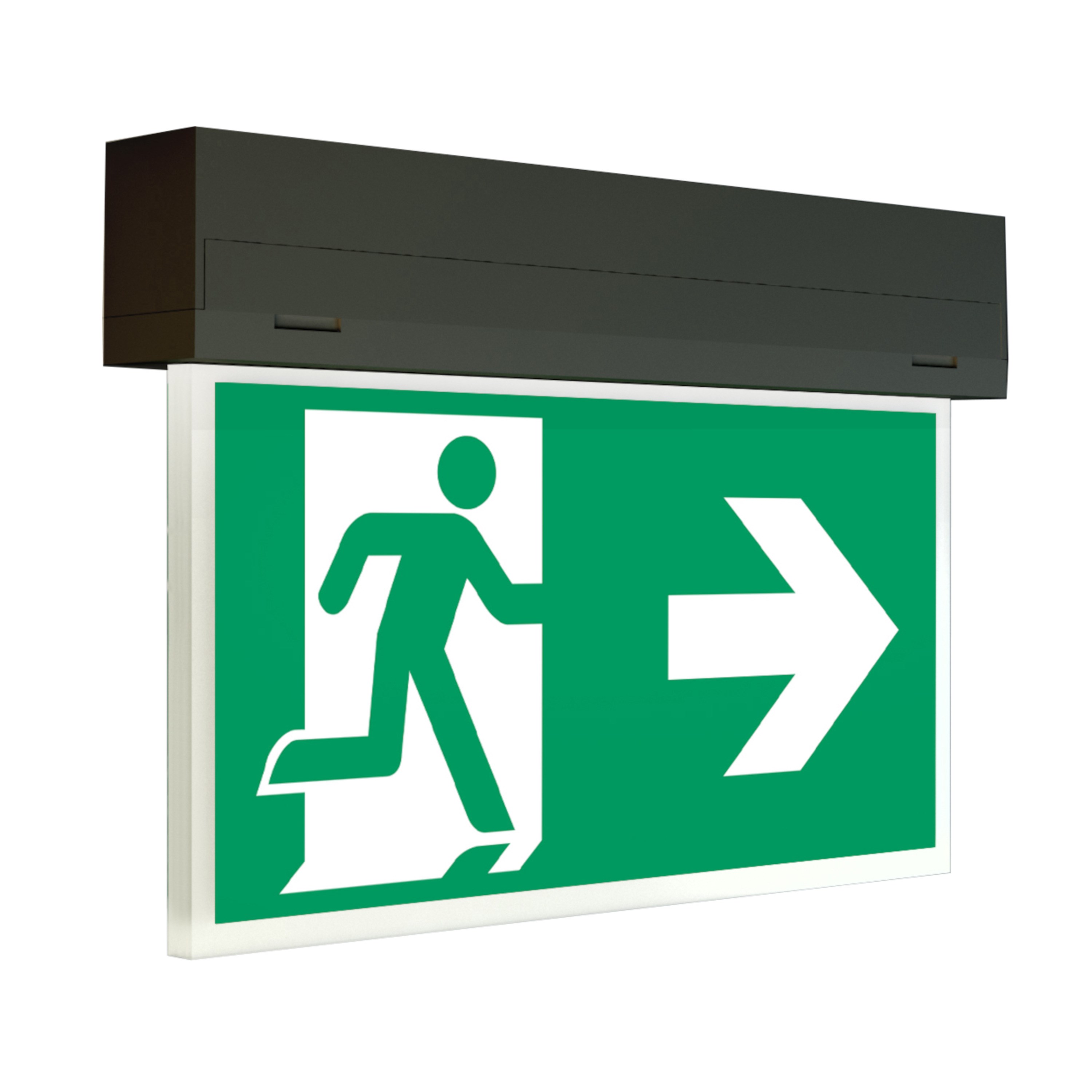

RP-Group KSH413SC-SW-ANZ Exit Sign Self-Contained Emergency Light Universal 3-hour Battery Power 30m Viewing Distance IP54 Black Polycarbonate Housing
