Specifications

Product Type	Emergency Light
Brand	RP-Group
Series	ILD
Degree of Protection	IP40
Diameter	100 mm
Height	36 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.19 Kg
Mounting	Surface mounting
Battery	LiFePO4 3,2 V/3,0 Ah
Battery connection	Connector
Bridging time	3 h
Dimming function	Yes
Emergency light blocking	No
Connection cross-section	2.5 mm²
Illuminant	LED
Monitoring	Wireless Basic (WB)
Operating mode	Non-maintained / maintained
Power maintained	2.3 W
Power max.	3.4 W
Power non-maintained	0.4 W
Switching input	Yes
Supply	Self-contained
Certification	WEEE, CE, 5 years warranty
Operating temperature maintained mode	-5 °C to 40 °C
IK Rating	≥ 3
Operating temperature non-maintained mode	-5 °C to 40 °C
Luminous flux emergency	250 lm
Luminous flux mains	130 lm
Weight incl. packaging	0.23 Kg
Housing color	White

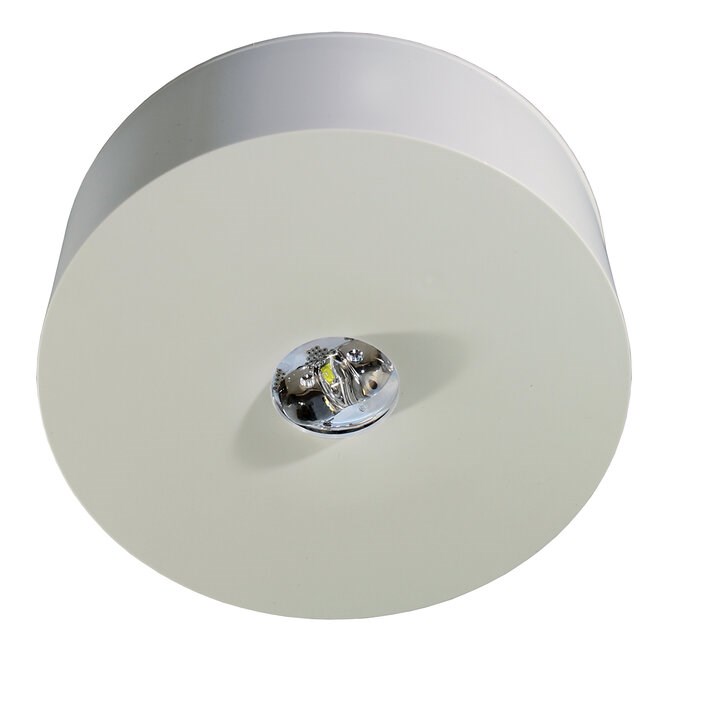

RP-Group ILDL423WB-ANZ-ILDE Emergency Light Self-Contained with Surface Mounting 3-hour Battery Power IP40 White Polycarbonate Housing
